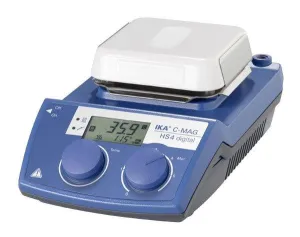

IKA C-Mag HS 4 Digital Magnetic Hotplate Stirrer

$761.00 (ex VAT)
item image

Description from the supplier

IKA C-Mag HS 4 Digital Magnetic Hotplate Stirrer


Speed Range
100 to 1,500 RPM
Heating Temp. Range
50 to 500°C
Stirring Quantity Max.
5 l

  • Powerful motor for stirring quantities of up to 5 l (H2O)
  • Simultaneous digital display of target and actual temperatures via LCD display
  • Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
  • Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
  • Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
  • 3 operating modes to choose (standard, safe, adjustment protection)
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >hot surface warning to prevent burns!
  • Digital error code display
  • Elevated control panel for protection against leaking liquids


The IKA C-Mag HS 4 Digital Magnetic Hotplate Stirrer is a powerful and versatile lab tool, ideal for stirring quantities up to 5 liters (H2O) with a speed range of 100 - 1500 rpm. It features a simultaneous LCD display of target and actual temperatures, and includes a PT 1000 temperature sensor for precise control with an accuracy of +/- 0.5 K. With three operating modes (standard, safe, adjustment protection), a fixed safety circuit at 550 °C, and a Hot Top indicator, it ensures safe operation. The ceramic set-up plate provides excellent chemical resistance and heats up to 500 °C. The stirrer’s compact design, durable construction, and advanced features, including a digital error code display and elevated control panel, make it a reliable choice for various laboratory applications.

Product details

Number of stirring positions1
Stirring quantity max. per stirring position (H2O)5 l
Motor rating output1.5 W
Direction of rotationleft
Speed controlscale 0 - 6
Speed range100 - 1500 rpm
Stirring bar length max.30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)1 +K
Heat output250 W
Temperature display set-valueLCD
Temperature display actual-valueLCD
Heating temperature range50 - 500 °C
Heat controlstepless
Heating rate heating plate2.5 K/min
Temperature setting resolution of heating plate5 K
Connection for ext. temperature sensorPT1000
Fixed safety circuit550 °C
Set-up plate materialceramic
Set-up plate dimensions100 x 100 mm
Dimensions (W x H x D)150 x 105 x 260 mm
Weight3.566 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 / 120 / 100 V
Frequency50/60 Hz
Power input270 W
