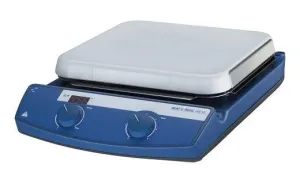

IKA C-MAG HS 10 Magnetic Hotplate Stirrer
Speed Range
100 to 1,500 RPM
Heating Temp. Range
50 to 500°C
Stirring Quantity Max.
15 l
Features
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
The IKA C-MAG HS 10 Magnetic Hotplate Stirrer features a powerful motor for stirring quantities up to 15 liters (H2O). It has a heating output of 1500 W and a ceramic heating plate offering excellent chemical resistance. The fixed safety circuit is set at 550 °C, with a Hot Top indicator to prevent burns. The device provides exact temperature settings via an LED digital display and includes a bushing for connecting a contact thermometer, such as the ETS-D5, for precise temperature control. It features a digital error code display and an elevated control panel for protection against spills. The stirrer offers a speed range of 100 - 1500 rpm with a turning knob for heat control. The set-up plate dimensions are 260 x 260 mm, and the device weighs 6 kg.
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 l |
Motor rating output | 1.5 W |
Direction of rotation | left |
Speed control | scale 0 - 6 |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 1 +K |
Heat output | 1500 W |
Temperature display set-value | LED |
Temperature display actual-value | LED |
Heating temperature range | 50 - 500 °C |
Heat control | Turning knob |
Heating rate heating plate | 5 K/min |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | ETS-D5 |
Fixed safety circuit | 550 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 260 x 260 mm |
Dimensions (W x H x D) | 300 x 105 x 415 mm |
Weight | 6 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 120 / 100 V |
Frequency | 50/60 Hz |
Power input | 1520 W |
