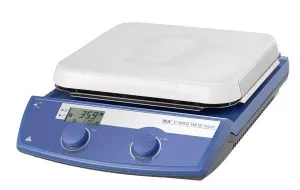

IKA C-MAG HS 10 Digital Magnetic Hotplate Stirrer
Speed Range
100 to 1,500 RPM
Heating Temp. Range
50 to 500°C
Stirring Quantity Max.
15 l
Features
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD display
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) | 15 l |
Motor rating output | 1.5 W |
Speed control | scale 0 - 6 |
Speed range | 100 - 1500 rpm |
Stirring bar length max. | 80 mm |
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | 1 +K |
Heat output | 1500 W |
Temperature display set-value | LCD |
Temperature display actual-value | LCD |
Heating temperature range | 50 - 500 °C |
Heat control | Turning knob |
Heating rate heating plate | 5 K/min |
Temperature setting resolution of heating plate | 5 K |
Connection for ext. temperature sensor | PT1000 |
Fixed safety circuit | 550 °C |
Set-up plate material | ceramic |
Set-up plate dimensions | 260 x 260 mm |
Dimensions (W x H x D) | 300 x 105 x 415 mm |
Weight | 8.308 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 230 / 120 / 100 V |
Frequency | 50/60 Hz |
Power input | 1520 W |
