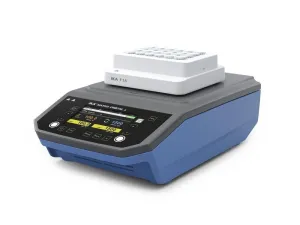

IKA Matrix Orbital Delta F1.5 Thermoshaker
Speed Range
0 - 1500 rpm
Time Setting Max.
6000 min
Heat Output
100 Watts
Features
- Large and clear display with a convenient menu structure allows for intuitive operation
- Speeds of up to 1,500 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Two different speed modes for gentle heating of the samples
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
The IKA Matrix Orbital Δ F1.5 is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital Δ F1.5 mixes and heats with a fixed insert for 24 x 1,5 ml tubes. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.In addition, IKA Matrix Orbital Δ F1.5 comes with numerous user-friendly features:
Click Here to View Product Video
INCLUDED:
The IKA Matrix Orbital Delta F1.5 Thermoshaker includes:
- MATRIX Orbital Delta F1.5
- IKA Pette vario 100-1000 µl
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration)
IKA Matrix Orbital Delta F1.5 Thermoshaker Specifications Type of movementorbitalShaking stroke3 mmMaximun load0.3 kgPermissible ON time100 %Speed min (adjustable)300 rpmSpeed range0 - 1500 rpmSpeed displayTFTSpeed deviation30 ±rpmSpeed control10 RPM StepsTimeryesTimer displayTFTTime setting min.1 sTime setting max. 6000 minOperating mode timer, continuous and program operationHeating temperature range room temp. +4° - 100 °CHeat output100 WHeat controlTFTSet temperature resolution1 ±°CTemperature control accuracy0.5 ±°CTemperature stability0.5 °CTemperature homogenity0.5 (@ 20°C ... 45°C); 1.5 ±°CHeating rate11 °C/minTemperature displayyesNumber of reaction vessels24x 1.5 mlDimensions (W x H x D)216 x 158 x 351 mmWeight9.2 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21RS 232 interfaceyesUSB interfaceyesVoltage100 - 240 VFrequency50/60 HzPower input240 WPower input max.240 WFuse2x T4A 250VComparison of ModelsSpecificationsMatrix Delta PlusMatrix Orbital Delta F0.5Matrix Orbital Delta F1.5Matrix Orbital Delta F2.0Matrix Orbital Delta FPMatrix OrbitalMatrix Orbital PlusShaking Stroke3 mm3 mm3 mm3 mm3 mm3 mm3 mmMaximum Load0.3 kg0.3 kg0.3 kg0.3 kg0.3 kg0.3 kg0.3 kgSpeed Range0 - 3000 rpm300 - 2000 rpm300 - 1500 rpm300 - 1500 rpm300 - 2000 rpm300 - 3000 rpm300 - 3000 rpmSpeed Control10 RPM Steps10 RPM Steps10 RPM Steps10 RPM Steps10 RPM Steps10 RPM Steps10 RPM StepsTime Setting Min.1 s1 s1 s1 s1 s1 s1 sTime Setting Max.6000 min6000 min6000 min6000 min6000 min6000 min6000 minHeating Temperature Range-10 to 100 °C4 to 100 °C4 to 100 °C4 to 100 °C4 to 100 °C--Heating Rate5.5 °C/min15 °C/min11 °C/min13 °C/min18 °C/min--Dimensions (W x H x D)216x127x351 mm216x149x351 mm216x158x351 mm216x158x351 mm216x147x351 mm200x120x320 mm216x127x351 mmVoltage100 - 240 V100 - 240 V100 - 240 V100 - 240 V100 - 240 V100 - 240 V100 - 240 V.comparison-table tr td:nth-child(4) { background-color: #fffacd; }Request a Formal Quote
Type of movement | orbital |
Shaking stroke | 3 mm |
Maximun load | 0.3 kg |
Permissible ON time | 100 % |
Speed min (adjustable) | 300 rpm |
Speed range | 0 - 1500 rpm |
Speed display | TFT |
Speed deviation | 30 ±rpm |
Speed control | 10 RPM Steps |
Timer | yes |
Timer display | TFT |
Time setting min. | 1 s |
Time setting max. | 6000 min |
Operating mode | timer, continuous and program operation |
Heating temperature range | room temp. +4° - 100 °C |
Heat output | 100 W |
Heat control | TFT |
Set temperature resolution | 1 ±°C |
Temperature control accuracy | 0.5 ±°C |
Temperature stability | 0.5 °C |
Temperature homogenity | 0.5 (@ 20°C ... 45°C); 1.5 ±°C |
Heating rate | 11 °C/min |
Temperature display | yes |
Number of reaction vessels | 24x 1.5 ml |
Dimensions (W x H x D) | 216 x 158 x 351 mm |
Weight | 9.2 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | yes |
USB interface | yes |
Voltage | 100 - 240 V |
Frequency | 50/60 Hz |
Power input | 240 W |
Power input max. | 240 W |
Fuse | 2x T4A 250V |
