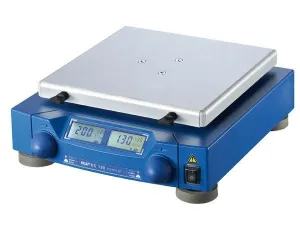

IKA KS 130 Control Shaker

IKA KS 130 Control Shaker

Type of Movement
Orbital
Speed Range
0 to 800 RPM
Shaking Stroke
4 mm

• Electronic adjustment of speed and timer
• A digital display makes it possible to read the speed, timerfunction and operating modes
• Electronic time switching clock: 0 - 9 h 59min or continuousoperation (endless)
• With integrated end point positioning (for automatedrobot-controlled sampling)
• All functions can be controlled and documented withlabworldsoft®
• Wide range of attachment combinations makes it possible touse almost all shapes and sizes of vessels
• Attachments are not included in delivery, please orderseparately

• KS 130 control
• Attachment screws (4x)
• Single-head wrench
• Power Cord
• Operator's Guide
• Manufacturer's Documentation
• 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration)

IKA KS 130 Control Shaker Specifications Type of movementorbitalShaking stroke4 mmPermissible shaking weight (incl. attachment)2.0 kgMotor rating input45 WMotor rating output10 WPermissible ON time100 %Speed min (adjustable)80 rpmSpeed range0 - 800 rpmSpeed displayLCDTimeryesTimer displayLCDTime setting range1 - 599 minOperating mode timer and continuous operationShaking table lock yesDimensions (W x H x D)270 x 98 x 316 mmWeight8.8 kgPermissible ambient temperature5 - 50 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21RS 232 interfaceyesAnalog outputyesVoltage220 - 240 / 100 - 120 VFrequency50/60 HzPower input45 WComparison of ModelsSpecificationsIKA KS 130 Basic ShakerIKA KS 130 Control NOL ShakerIKA KS 130 Control ShakerIKA KS 260 Basic ShakerIKA KS 260 Control NOL ShakerIKA KS 260 Control ShakerIKA KS 501 Digital ShakerShaking Stroke4 mm4 mm4 mm10 mm10 mm10 mm30 mmPermissible Shaking Weight (incl. attachment)2.0 kg2.0 kg2.0 kg7.5 kg7.5 kg7.5 kg15 kgMotor Rating Input45 W45 W45 W45 W45 W45 W70 WSpeed Range80 - 800 rpm80 - 800 rpm80 - 800 rpm50 - 500 rpm10 - 500 rpm10 - 500 rpm0 - 300 rpmTimerYesYesYesYesYesYesYesTime Setting Range5 - 50 min1 - 599 min1 - 599 min5 - 50 min1 - 599 min1 - 599 min1 - 55 minDimensions (W x H x D)270 x 98 x 316 mm270 x 98 x 316 mm270 x 98 x 316 mm360 x 98 x 420 mm360 x 98 x 420 mm360 x 98 x 420 mm505 x 120 x 585 mmRS 232 InterfaceNoYesYesNoYesYesYesAnalog OutputNoYesYesYesYesYesYesVoltage220 - 240 / 100 - 120 V220 - 240 / 100 - 120 V220 - 240 / 100 - 120 V220 - 240 / 100 - 120 V220 - 240 / 100 - 120 V220 - 240 / 100 - 120 V230 / 115 / 100 V.comparison-table tr td:nth-child(4) { background-color: #fffacd; }
