Brand
Gilson
Model
Gilson Minipuls 3
Location
Hampton - United States
Price
$2,055.00
(ex. VAT)
This item is
for sale
State of item
new
Categories

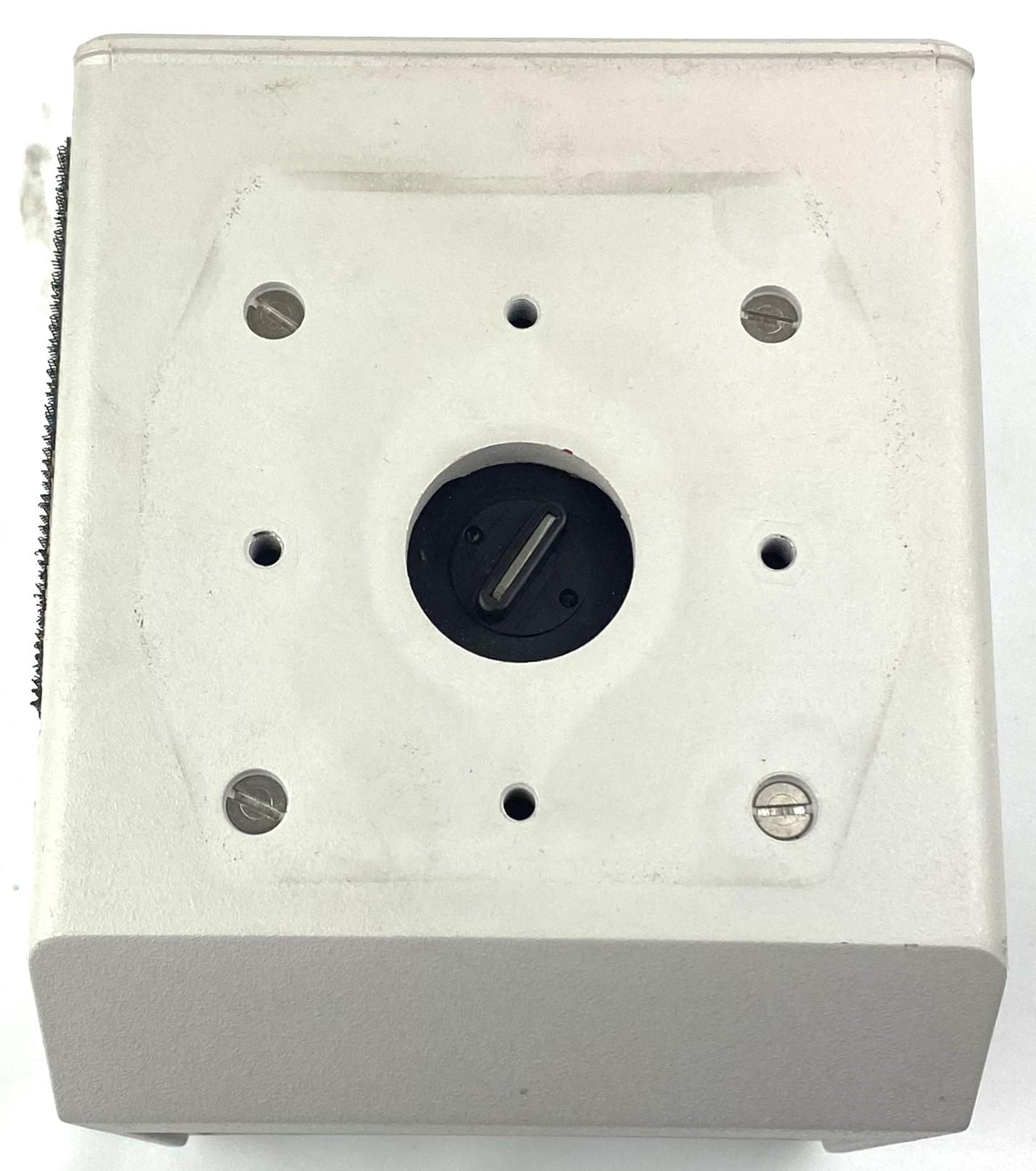

Gilson MINIPULS 3 Peristaltic Pump (Drive Unit Only), 110V/220V

$2,055.00 (ex VAT)
item image

Description from the supplier

  • Utilizes positive displacement pump technology that allows liquid to flow nearly pulse free as a result of ten stainless steel rollers
  • Produces smooth flows with excellent accuracy and precision, even at high flow rates
  • Interchangable heads allow for an array of possible applications
  • Easy to operate, install, and maintain due to simplistic functionality
  • All control buttons are readily accessible and intuitive to use
  • Small lab footprint and with a weight of only 5.5 pounds the MINIPULS 3 is exceptionally portable.
  • Has a maximum flow range of 30 mL/min for standard models and 220 mL/min for high flow models
  • Remote start and stop possible

The compact MINIPULS® 3 is a high-performance, low-pulse, peristaltic pump with interchangeable pump heads for delivering a diverse variety of liquids—from biological to chemical—without altering the critical components within the liquid. Six different channel and flow rate configurations are available.Pulse-free Liquid TransferUtilizing positive displacement pump technology, liquid flows nearly pulse-free as a result of as many as ten stainless steel rollers. The MINIPULS 3 produces smoother flows with excellent accuracy and precision, even at high flow rates. Its adjustable speed stepper motor and high-quality precision bore tubing assure reproducible flow rates.Flow Rates to Meet Your NeedsWith a choice of six quickly interchangeable pump heads, you’ll have a wide range of flow rates to use for your applications.
• Four standard models (1, 2, 4, or 8 channels): 0.3 μL/min to 30 mL/min
• Two high flow models (2 or 4 channels): 1 mL/min to 220 mL/minEasy to OperateMINIPULS 3 is easy to install, simple to operate, and easy to maintain. With an uncomplicated keypad control and easy-to-read LCD screen, access functions for start/stop, flow direction, increase/decrease flow rate, and prime. Remote control is also possible. (Please Note: A Pump Head is NOT INCLUDED and is required for operation, please inquire.)

  • Operator's Manual
  • Manufacturer's Documentation
  • 1 Year Manufacturer's Warranty

Product details

Head Speed0.01 to 48 RPM
Motor Speed Stability0.5% for any variation, torque, or temperature
Flow Rate RangeMaximum: MP model 30 ml/min (1.8L/h, 4mm tubing), HF model 220ml/min (13.2L/h, 8mm tubing) Minimum: 0.3ul/min (0.25mm tubing)
PositionUpright only (vertical ± 5%)
Maximum Back Pressure0.5 MPa (72.5 psi) for MP models, 0.3 MPa (43.5 psi) for HF models
Peristaltic Tubing Diameter0.25 to 4mm (ID) for MP models, 2 to 8mm (ID) for HF models
Operating Temperature4 to 40°C: No warm-up time is required before operation
Dimensions (W x D x H)5.9 x 6.9 x 7.3 in. (15 x 17.4 18.5 cm)
Weight5.5 lb. (2.5 kg)
Electrical Requirements100-240V, 50/60Hz
