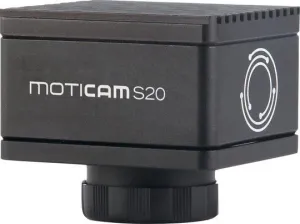

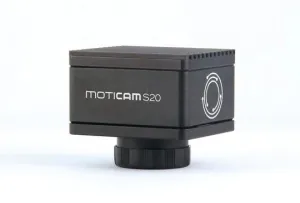

Motic MOTICAM S20 Back-Illuminated Sensor Microscope Camera
Product Description
The Motic MOTICAM S20 is a high-resolution microscope camera featuring advanced back-illuminated sCMOS sensor technology optimized for detailed imaging. Key specifications and features include:
- Sensor Type: sCMOS (scientific CMOS)
- Sensor Size: 1" diagonal imaging area measuring 15.86 mm
- Resolution: 20 megapixels (5472 x 3648 pixels max capture)
- Live Display Resolutions:
- 5472 x 3648 pixels
- 2736 x 1824 pixels (live mode)
- Pixel Size: 2.4 x 2.4 µm
- Scan Mode: Progressive
- Shutter Mode: Rolling shutter
- Data Transfer Interface: USB 3.1 for high-speed data transmission
- Frame Rates:
- 18 fps at full resolution (5472 x 3648)
- Up to 50 fps at 2736 x 1824 resolution under optimal lighting and compliant PC specs
- Exposure Time Range: 15 µsec to 2 sec, allowing flexibility for varied lighting conditions
- Operating Temperature: -10 to +60 °C, non-condensing environment
- Sensitivity: 461 mV(G) @ 1/30 sec exposure
- Compatibility:
- Device support via TWAIN, SDK, and DirectShow drivers
- Supported Operating Systems: Microsoft Windows 7/8/10, macOS, Linux or higher
- Minimum PC Requirements: 2 GHz dual-core processor, 2 GB RAM, minimum 512 MB video memory
- Lens Mount: C-Mount compatible
- Software Package: Motic Images Plus 3.0 available for Windows, OSX, and Linux, supporting:
- Still image and video capture
- Live and still image measurement
- Image adjustment tools (white balance, automatic/manual exposure)
- Individual objective calibration system
- Power: 5 V supplied via USB port
- Included Accessories: CS ring adaptor, USB 3.1 cable, 4-dot calibration slide, Motic Images Plus 3.0 software
The camera is engineered to optimize image capture speed (up to 50 fps at reduced resolution), precision, and ease of use for professional microscopy applications requiring high-resolution, rapid image acquisition with strong compatibility and hardware flexibility.
Item Stats
Product details
| Model | S1 |
| Sensor Type | sCMOS |
| Sensor Size | 1/3" |
| Imaging Area | 6.09mm (Diagonal) |
| Capture Resolution Info | 1.2MP |
| Live display mode through USB (pixels) | 1280x960, 640x480 |
| Pixel size | 3.75x3.75μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Data transfer | USB 3.1 |
| Max. frames per second (fps*) | 1280x960 @ 120fps, 640x480 @ 240fps |
| Exposure time | 15 μsec to 2 sec |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
| Sensitivity | 2350mV(G) @ 1/30 sec |
| Support device | TWAIN, SDK and DirectShow Driver |
| Supported OS | Microsoft Windows 7/8/10, MAC OSX, Linux or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system |
| Power supply | 5V (from USB Port) |
| Package includes | CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux |
