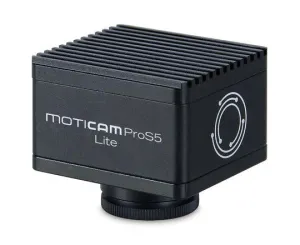

Motic MOTICAM PRO S5 Lite Microscope Camera with 5MP Global Shutter Sensor
Product Description
The Motic MOTICAM PRO S5 Lite is a digital microscope camera optimized for documentation of large biological and medical samples with enhanced low-light sensitivity. Its global shutter sensor enables accurate capture of moving or fast biological phenomena.
- Sensor Type: sCMOS, 2/3" sensor size
- Imaging Area: 11.1 mm diagonal
- Resolution: 5 Megapixels (2448 x 2048 pixels max)
- Pixel Size: 3.45 x 3.45 μm
- Shutter Mode: Global Shutter for minimized motion artifacts
- Data Transfer: USB 3.1 interface for high-speed data transmission
- Max Frame Rate: Up to 37.5 fps at full resolution (2448x2048), 88.4 fps at 1224x1024 pixels
- Exposure Time Range: 14 μsec to 2 seconds
- Operating Temperature: -10 to +60 °C (non-condensing)
- Sensitivity: 1146 mV(G) at 1/30 sec exposure
- Lens Mount: Standard C-Mount compatible with a wide range of microscope objectives
- Software Compatibility: Comes with Motic Images Plus 3.0 software (Windows, OSX, Linux) supporting image capture, measurement, calibration, and image adjustments
- Device Support: Supports TWAIN, SDK, and DirectShow drivers for integration into imaging workflows
- Power: Powered directly via USB 3.1 port (5 V)
- Package Includes: CS ring adapter, USB 3.1 cable, 4-dot calibration slide, and software package
This professional-grade camera is well-suited for biological, medical, and industrial microscopy applications requiring precise image capture of large, dynamic specimens under various lighting conditions.
Item Stats
Product details
| Model | S1 |
| Sensor Type | sCMOS |
| Sensor Size | 1/3" |
| Imaging Area | 6.09mm (Diagonal) |
| Capture Resolution Info | 1.2MP |
| Live display mode through USB (pixels) | 1280x960, 640x480 |
| Pixel size | 3.75x3.75μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Data transfer | USB 3.1 |
| Max. frames per second (fps*) | 1280x960 @ 120fps, 640x480 @ 240fps |
| Exposure time | 15 μsec to 2 sec |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
| Sensitivity | 2350mV(G) @ 1/30 sec |
| Support device | TWAIN, SDK and DirectShow Driver |
| Supported OS | Microsoft Windows 7/8/10, MAC OSX, Linux or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system |
| Power supply | 5V (from USB Port) |
| Package includes | CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux |
