IKA A11 Basic Analytical Mill

Marshall Scientific$2,358.00 (ex VAT)
item image

Description by the supplier

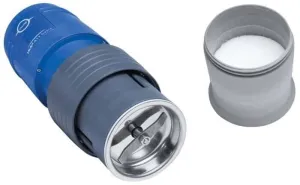

IKA A11 Basic Analytical Mill



Operating Principle

Cutting / Impact

Max. Speed

28,000 RPM

Feed Hardness Max.

6 Mohs



Features

- Moist and gluey materials can be pulverized by adding water

- Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber

- Optionally, a 250 ml grinding chamber is available

- Can cool mill feed with dry ice or liquid nitrogen for processing sensitive materials.

- Small footprint with high performance, ideal for laboratory use.





The IKA A11 Basic Analytical Mill is a versatile batch mill designed for two different grinding procedures. It features impact grinding for hard, brittle, or non-elastic materials using a high-grade stainless steel beater, suitable for materials with a Mohs hardness up to 6. It also supports cutting grinding for pulverizing soft, fibrous materials with an optional cutting blade. The mill can pulverize moist and gluey materials by adding water and includes an 80 ml Tefcel (PTFE, glass fiber-reinforced) grinding chamber with a stainless steel inlet, with an optional 250 ml chamber available. Capable of cooling the mill feed with dry ice or liquid nitrogen, it operates at a maximum speed of 28,000 rpm with a circumferential speed of 53 m/s. The compact design measures 85 x 240 x 85 mm and weighs 1.5 kg, making it suitable for laboratory environments with temperatures from 5 to 40 °C and humidity up to 80%. The A11 Basic Analytical Mill offers precise and efficient grinding with a motor rating input of 160 W and output of 100 W, ensuring reliable performance for various grinding applications.INCLUDED:

The IKA A11 Basic Analytical Mill includes:

- A 11 basic Analytical mill

- A 11.1 Spare beater

- Power Cord

- Operator's Guide

- Manufacturer's Documentation

- 2 Year Manufacturer Warranty ( + Additional Free 1 Year Warranty Extension with IKA Registration)



IKA A11 Basic Analytical Mill SpecificationsProcess typebatchOperating principlecutting/impactMotor rating input160 WMotor rating output100 WSpeed max.28000 rpmCircumferential speed max.53 m/sUseable volume max.80 mlFeed hardness max.6 MohsFeed grain size max. 10 mmMaterial beater/cutter stainless steel 1.4034Material milling chamber stainless steel 1.4571Power-ON time1 minPower-OFF time10 minMill feed can be cooled in milling chamber with dry iceyesMill feed can be cooled in milling chamber with liquid nitrogenyesDimensions (W x H x D)85 x 240 x 85 mmWeight1.5 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 43Voltage220 - 230 / 100 - 115 VFrequency50/60 HzPower input160 W

Product details
Process typebatch
Operating principlecutting/impact
Motor rating input160 W
Motor rating output100 W
Speed max.28000 rpm
Circumferential speed max.53 m/s
Useable volume max.80 ml
Feed hardness max.6 Mohs
Feed grain size max.10 mm
Material beater/cutterstainless steel 1.4034
Material milling chamberstainless steel 1.4571
Power-ON time1 min
Power-OFF time10 min
Mill feed can be cooled in milling chamber with dry iceyes
Mill feed can be cooled in milling chamber with liquid nitrogenyes
Dimensions (W x H x D)85 x 240 x 85 mm
Weight1.5 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 43
Voltage220 - 230 / 100 - 115 V
Frequency50/60 Hz
Power input160 W
