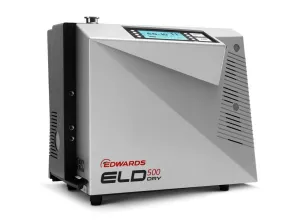

Edwards ELD500 - 200-240V 50/60Hz EU Helium Leak Detector

$25,973.00 (ex VAT)
item image

Description from the supplier

ELD500


Max. Measurement
< 5x10-12
Cooling Method
Forced Fan
Max. Inlet Pressure
15 mbar

  • Color touch screen control with local graphical display and audible leak detection. Wireless models allow simultaneous control of up to 10 leak detectors.
  • MOBILE SOLUTION - Low weight and integrated carry handles which allow it to be bench top or trolley mounted.
  • Measurement of leaks for Helium of < 5x10-12 mbar ls-1 in vacuum mode and < 7x10-9 mbar ls-1 in sniffer mode.
  • ELD500 version with an integrated oil sealed rotary vane pump - ELD500 DRY version with an integrated helium optimised diaphragm pump - ELD500 FLEX version without a primary pump
  • Partial flow kit allows effective pump down of large of contaminate flows compatible with ELD500 and FLEX variants.
  • Standard sniffer line enables operation up to 4m from the ELD500. Longer sniffer lines of up to 50m can be used with the sniffer extender interface.
  • Ensured by class leading 180° mass spectrometer.
  • Power Cord
  • One Year Manufacturer's Warranty
