Labconco RapidVapVacuum Evaporation System with Lid HeaterAdvanced vacuum function
Microprocessor controls vacuum at preset level; Automatic vacuum release if power fails
LCD shows vacuum level from 0 to 999mbar
Rear-mounted vacuum connections: vacuum port, tubing clamps, lid heater receptacle, 30 in.L (76cm) 0.5 in. I.D. tubing for connection to accessory vacuum pump
Safety features
Lexan™ shield on clear glass lid protects against glass implosion
Dual lid clamps hold lid securely in place for vacuum-tight seal
Phenol-free gasket provides complete sealing under vacuum
PTFE-coated aluminum chamber
Audible/visual alarm for end point detected by temperature sensors at heater and block
Optional Lid Heater
40w heater plugs into electrical receptacle on rear
Eliminates fogging, increases visibility when evaporating water or other high-boiling-point solvents
Improved control panel
Easy-to-read LCD display prompts operator to program desired parameters, and displays vortex speed by percentage, actual and set temperatures in C, and total time remaining in minutes. Enter up to nine different protocols into memory for easy repetition of exact test parameters
Advanced heating system
Contamination- and maintenance-free 1000-watt dry block heating system speeds evaporation rate by supplying a controlled amount of heat from ambient up to 100C
Heater and sample block move in tandem for more efficient heat transfer
Alarm signals completion of run, allowing samples to be left unattended while evaporating to desired endpoint
Efficient operation
Brushless DC motor ensures safe, maintenance-free operation and provides smooth, variable-speed power up to 1000rpm
Produces no potentially dangerous sparks
Increased durability
Systems may be used with broad range of strong chemicals
Powder-coated, aluminum cabinet base with smooth, solvent-resistant acrylic/PVC thermoplastic upper housing
Aluminum chamber with PTFE coating conducts heat efficiently and resists corrosion
All mechanical components are isolated from chemical fumes and vapors for longer life
Chemical-resistant glass lid provides visibility of samples and detaches for cleaning
Two clamps hold lid securely in place
Phenol-free gasket provides sealing without potential for phenol contamination

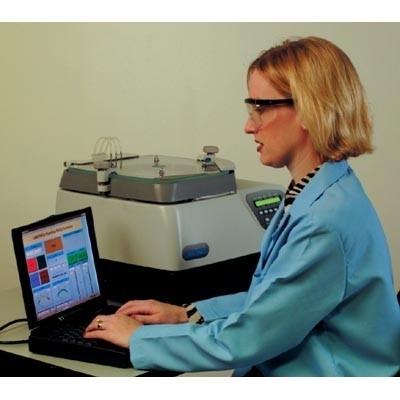

RapidVap models with optional RS-232 link allow all front panel functions to be performed and monitored from a personal computer (not included)
INCLUDED:
The Labconco 7900002 RapidVapVacuum Evaporation System with Lid Heater, 115V, 60Hz includes:
- Vacuum Hose
- Clamps x 2
- Heat Transfer Grease
- Power Cord
- Operator's Guide
- Manufacturer's Documentation
- 1 Year Manufacturer's Warranty
Certifications | ETL, ETL-C |
Capacity (Metric) | 450mL |
Dimensions | 20.7”w x 18.4”d x 13.5”h 53 x 47 x 34 cm |
Max. Vacuum | 0 to 999mbar |
Pump Type | Diaphragm or Rotary Vane |
Weight | 100 lb. (45kg) |
Cap Lid Type | Glass with Lexan Shield |
Includes | Lid heater |
Motor Type | Brushless DC |
Total Count | 110.0 |
Electrical | 115V, 50/60Hz, 8.6A |
Memory | 9 user set program |
Display | LCD |
Material | PTFE Coated Aluminum |
Speed | 1000rpm |
Volume (Metric) | 4.5 to 450mL |
