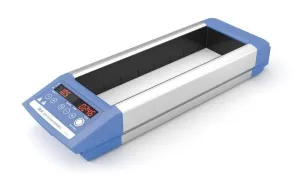

IKA Dry Block Heater 4
IKA Dry Block Heater 4
Heating Temperature Range
room temp. +5° - 120 °C
Number of Blocks
4 Blocks
Set-up plate material
Aluminium alloy
Features
- Digital block heater for four aluminum blocks, offering precise temperature control for small vessels
- Includes PT-1000 temperature sensor for direct temperature control in the sample vessel
- Compatible with PCR tubes, PCR strips, Greiner tubes, microplates, and cuvettes
- Features a counter for displaying heating time and a large selection of blocks for versatility
- Error code display and fixed safety circuit enhance reliability and safety
- Acoustic signal indicates the end of a test for user convenience
- Made from aluminum alloy with set-up plate dimensions of 96 x 304 mm
Digital block heater for four aluminum blocks provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.INCLUDED:
The IKA Dry Block Heater 4 includes:
- Dry Block Heater 4
- Block remove tool
- PT 1000.60 Temperature sensor, stainless steel
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
| Number of blocks | 4 |
| Heat output | 412 W |
| Heating temperature range | room temp. +5° - 120 °C |
| Temperature display | yes |
| Adjustment and display resolution | 1 K |
| Connection for ext. temperature sensor | CT (DIN12878) |
| PT 1000 variation;DIN EN 60751 Kl. A | ≤ ± (0.15 +0.002xITI) K |
| Temperature stability within the blocks at 37°C * | ±0.2 °C |
| Temperature stability within the blocks at 60°C * | ±0.4 °C |
| Temperature Homogenity @ 37°C * | 0.3 K |
| Temperature Homogenity @ 60°C * | 0.6 K |
| Heatingrate / Heat up time with external sensor * | 4 K/min |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions | 96 x 304 mm |
| Fixed safety circuit | 150 °C |
| Timer | yes |
| Time setting range | 1 - 5999 min |
| * Measured in IKA DBH Testingblock | Refer Manual for more details |
| Dimensions (W x H x D) | 151 x 73 x 456 mm |
| Weight | 2 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 412 W |
