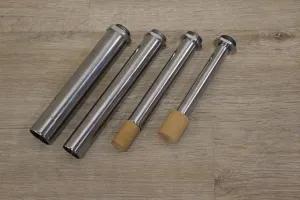

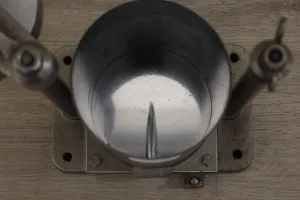

Tube Filling Device

HX7 scale’s multi functions Many functions, many interfaces and great robustness (IP66/ IP68)  (more)mean many possibilities for you to use this advanced scale. Tomorrow you can apply it to a different process than today – that’s the multifunctionality. That’s the saving! Use the potential Barcode scanners, receipt printers, label printers, external displays, control buttons, light signalling towers and other controlling/ signalling devices – thanks to multipurpose software, HX7 scale can work with all of them. You can easily connect them thanks to the fact that the balance is equipped with interfaces: RS232, RS485, USB, Ethernet, 4 IN/ 4 OUT. Optionally, the balance can be equipped with 12 IN/ 12 OUT and analog output module. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you. Easy and pleasant Simple and convenient operation with a 7-inch color display. Perfectly visible messages additionally supported by bargraph. The top part of the operation panel features a bar graph consisting of 9 red and green diode fields. The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds. The bracket allows the terminal to be placed on any flat horizontal surface or screwed to the wall with adjustable angle. The power of steel The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The construction of the scale is made of powder-coated steel with a stainless steel weighing pan. This guarantees you work for many years, and what’s more, powder-coated steel is more environmentally friendly than traditional painting methods. Not just weighing But also parts counting, dosing, percent weighing and formulations. The power of HX7’s working mods. Do you need ALIBI? There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased. Referring to stored weighings you can generate weighing reports, formulation reports and reports on performed control processes. Single weighing is stored in the ALIBI memory as long as it is specified by a Weighing Storage Period (days) parameter.

The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous (more) areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used. The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements. Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive. More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems. Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component. To operate the scale, order a selected type of the dedicated intrinsically safe power supply. Power supply types: PM01.EX-1 - power supply for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area. PM01.EX-2 - power supply for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area. Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics. The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process. Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

Contrast technique: Bright field and phase contrast Tripod: 45° angle Eyepiece: WF 10x/22 mm Objecti (more)ve turret: 5 positions Objectives: LPlan PH2 10x/0.25, 20x/0.40, 40x/0.65 Working distance: 72 – 150 mm Table: 250 x 160 mm Condenser: Removable N.A 0.30 Focus system: Coaxial coarse and fine adjustment Lighting: LED (white, 8 W) Dimensions (WxDxH): 230 x 540 x 495 mm Weight: 9kg

Progressive scan type 2/3″ CCD, super-high-resolution with 1.4 million pixels (1280×1024) 5.1 cm pol (more)ysilicone TFT display for frame and focus adjustment in preview mode Camera control with handswitch, avoids vibrations of camera head and guarantees sharp images Photometric system with integral (30%) and spot (1%) metering possibility Automatic exposure adjustment with auto-exposure lock +/- 3 step compensation JPEG image format with three resolution modes 3.3 V SmartMedia (SSFDC) with 8 MB intermediate image storage without PC Direct printing to Olympus P-330E high resolution dye-sublimation printer (306 dpi) Camera control with personal computer via serial interface
