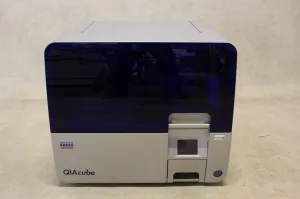

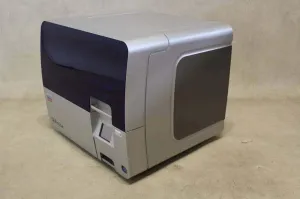

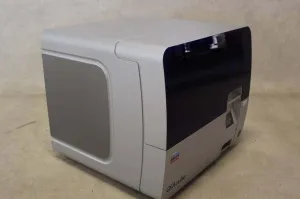

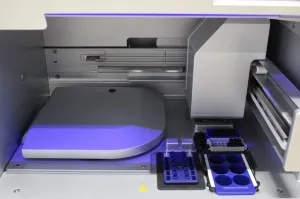

QIAGEN QIAcube System

The cutting-edge QIAcube system expertly manages integrated components such as a centrifuge, heated shaker, pipetting system, and robotic gripper. This sophisticated design allows the QIAcube to fully automate the processing of over 40 QIAGEN spin-column kits.

Preloaded with a diverse array of protocols, the QIAcube facilitates the purification of RNA, genomic DNA, plasmid DNA, viral nucleic acids, and proteins, as well as DNA and RNA cleanup. The extensive library of QIAGEN standard protocols is continuously expanding and available for free download. Furthermore, users can request customized protocols tailored to specific application needs.

Ideal for academic, pharmaceutical, biotechnology, and biomedical research laboratories, the QIAcube supports a spectrum of applications, including sequencing analysis, gene expression analysis, genotyping, and proteomics.

• Centrifuge: Max 12,000 x g, swing-out rotor with 12 positions, max 45°
• Humidity: 10-75% relative humidity (noncondensing)
• Instrument dimensions: 650 x 620 x 570 mm
• Operating temperature: 18 – 28°C
• Pipetting system: 1 ml syringe, 5-900 µl range
• Samples per run: 1–12
• Shaker: Speed 100-2000 rpm, 2 mm amplitude, heat from room temp to 70°C
• Software: Preinstalled QIAGEN protocols or downloadable at www.qiagen.com/MyQIAcube
• Weight: 70.5 kg
