Motic BA310 MET Binocular

Motic BA310 MET Binocular

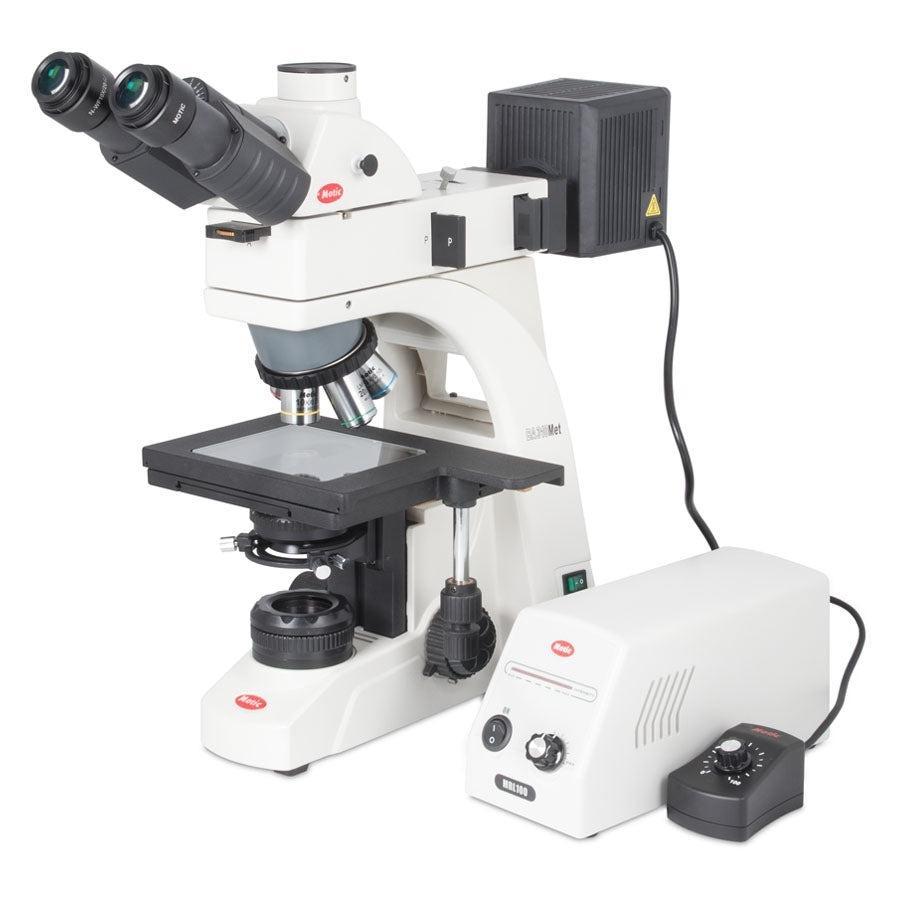

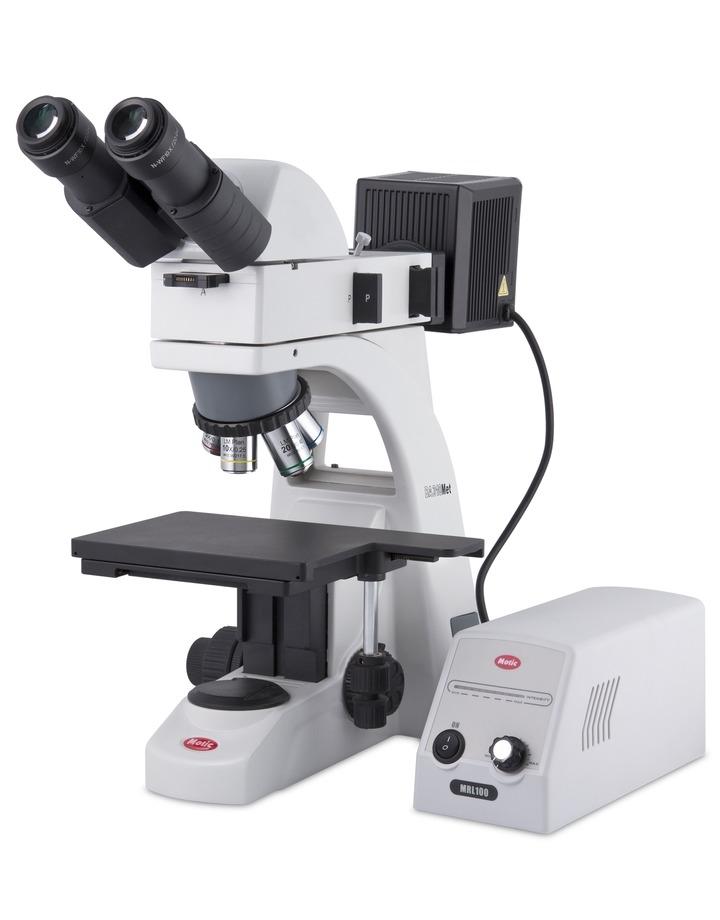

Motic’s BA310MET series presents a powerful microscope line for incident light applications in all material sciences. Industrial quality control of opaque samples can be performed as well as teaching in educational environments of engineering and material professions, where affordability and ease of use are key demands. Extended flexibility is given by the BA310MET-T models with built-in transmitted light for transparent or compound materials. The BA310MET-H includes a more flexible focusing device, dedicated to larger samples with little limitation in size.

Motic's LM Plan-Achromatic objectives with Long-Working Distance for incident light provide optimal image contrast for reflective, non-covered specimen. Together with a fully corrected tube lens an intermediate image without colored fringes is created. In all models the Epi-Illuminator offers a powerful 50W Halogen light source. The built-in field diaphragm and aperture diaphragm help to optimize image quality by reducing stray light and thus increasing contrast.INCLUDED:

The Motic BA310 MET Binocular includes:

- 5X/0.13 (WD 20.3mm) Objective

- 10X/0.25 (WD 17.5mm) Objective

- 20X/0.40 (WD 8.1mm) Objective

- 50X/0.55 (WD 8.4mm) Objective

- Widefield UC-WF10X/22mm with Diopter Adjustment

- Dust Cover

- Power Cord

- Allen Key

- Operator's Guide

Motic BA310 MET Binocular SpecificationsObservation tubeBinocular head, Siedentopf type, 360° swivelingOptical systemColour Corrected Infinity Optical System (CCIS®)Diopter adjustmentOn both eyepieces, +/- 5 diopterEyepiecesWidefield N-WF10X/20mm with diopter adjustmentFine focus precision2µmFocus mechanismCoaxial coarse and fine focusing system with tension adjustmentFocusing stroke30mmIllumination featuresExternal lamp house for Epi-illuminatorIllumination interchangeabilityQuartz halogen 12V/50W or LED 3WIncident illuminationQuartz halogen 12V/50W with integrated field and aperture diaphragmsInclination30° inclinedInterpupillary distance48-75mmNosepieceReversed quintupleObjective classificationCCIS® EC Plan Achromatic, DINObjective mounting threadW 4/5"x1/36" (RMS standard)Objectives5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)PolarizationOptional slidersStageMechanical stage, hard coated with built-in low position coaxial stage controlStage size180x140mmStand typeUprightStandard contrast techniqueBrightfieldTravel range X&Y75x50mmUpper limit stopUpper limit stop preset but adjustableTransformerExternalPower supply100-240V (CE)Dimensions LxWxH508x240x465mmWeight Net12.5kgComparison of ModelsSpecificationMotic BA310 MET BinocularMotic BA310 MET TrinocularMotic BA310 MET-H TrinocularMotic BA310 MET-H Trinocular (Erect Image)Motic BA310 MET-T Trinocular (3"x2" Stage)Motic BA310 MET-T Trinocular (6"x4" Stage)Motic BA310 MET-T Trinocular (Erect Image)Motic BA310 MET-T Trinocular (Stroke 3”x 2” Stage) (Erect Image)Observation TubeBinocular headTrinocular headTrinocular headTrinocular head (Erect Image)Trinocular head, Siedentopf type, 360° SwivelingTrinocular head, Siedentopf type, 360° SwivelingTrinocular head, Siedentopf type, 360° SwivelingTrinocular head, Siedentopf type, 360° SwivelingInterpupillary Distance48-75mm48-75mm55-75mm55-75mm48-75mm48-75mm48-75mm48-75mmObjective ClassificationCCIS® EC Plan Achromatic, DINCCIS® EC Plan Achromatic, DINCCIS® LM Plan Achromatic, DINCCIS® LM Plan Achromatic, DINCCIS® LM Plan Achromatic, DINCCIS® LM Plan Achromatic, DINCCIS® EC Plan Achromatic, DINCCIS® LM Plan Achromatic, DINObjectives5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 11.5mm), 10X/0.3 (WD 6.8mm), 20X/0.40 (WD 11.1mm), 50X/0.55 (WD 8.2mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)StageMechanical stage, hard coated with coaxial stage controlMechanical stage, hard coated with coaxial stage controlMechanical stage, hard coated with coaxial stage controlMechanical stage, hard coated with coaxial stage controlMechanical stage, hard coated with built-in low position coaxial stage control and glass plateMechanical stage, hard coated with built-in low position coaxial stage control and glass plateMechanical stage, hard coated with built-in low position coaxial stage controlMechanical stage, hard coated with built-in low position coaxial stage control and glass plateStage Size180x140mm180x140mm180x140mm180x140mm240x140mm300x180mm180x140mm240x140mmTravel Range X&Y75x50mm75x50mm100x80mm100x80mm75x50mm150x100mm75x50mm75x50mmIllumination InterchangeabilityQuartz halogen 12V/50W or LED 3WQuartz halogen 12V/50W or LED 3WQuartz halogen 12V/50W or LED 3WQuartz halogen 12V/50W or LED 3WEpi-illuminator Quartz halogen 12V/50W or LED 3W, transmitted Quartz halogen 6V/30W or LED 3WEpi-illuminator Quartz halogen 12V/50W or LED 3W, transmitted Quartz halogen 6V/30W or LED 3WQuartz halogen 12V/50W or LED 3WEpi-illuminator Quartz halogen 12V/50W or LED 3W, transmitted Quartz halogen 6V/30W or LED 3W.comparison-table tr td:nth-child(2) { background-color: #fffacd; }DownloadsTechnical Specification Download

Operator's Manual Download
