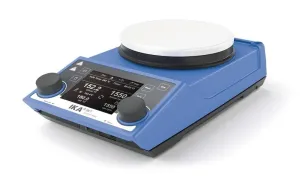

IKA RET control-visc white

Marshall Scientific$1,614.00 (ex VAT)
item image

Description by the supplier

RET control-visc white



Speed Range

50 to 1,700 rpm

Temperature setting range

0 - 340 °C

Setting accuracy speed

10 rpm



Features

- BNC socket for connection of a pH electrode

- Adjustable temperature control mode: rapid heating and very accurate temperature control

- Dual sensor for simultaneous control of heat transfer fluid temperature and medium temperature

- Timer and countdown functions

- Display of viscosity change trend

- Detached magnet detection

- Intermittent operation

- Several modes of operation available

- Safety circuit adjustable from 50 to 380°

- Transparent protective cover included

- Error code display for easy troubleshooting

- Exact temperature and speed adjustment by means of digital display; even when function switched off

- Suitable for unsupervised operation

- Sealed casing (IP 42) ensures a long service life

- Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5)





PATENTED WORLD FIRST: Safety magnetic stirrer with heating and integrated balance. Clear, multilingual TFT display makes it easy to set all parameters.


Integrated temperature control feature enables connection of a temperature probe, placed directly in the medium, to control medium temperature with a high degree of precision. PT 100 temperature sensor is included. The stainless steel composite hot plate with white ceramic coating, reaching a temperature of 340 °C, enables rapid heating and very good chemical resiatance.


RS 232 and USB interfaces enable pc control of the magnetic stirrer and documentation of all test parameters. "Lock" function prevents inadvertent changes of speed and temperature settings. As a safety feature, the current temperature is displayed when the unit is switched off but surface is still hot. Below 50 °C the display turns off automatically.INCLUDED:

The RET control-visc white includes:

- RET control-visc white

- PT 100.70 Temperature sensor

- IKAFLON® 30 Magnetic stirring bar

- IKAFLON® 40 Magnetic stirring bar

- Screw driver

- H 104 Cover for RET control

- USB Cable - USB A to Micro-B, 2 m

- Manufacturer's Documentation

- 2 Year Manufacturer's Warranty

Product details
Number of stirring positions1
Stirring quantity max. per stirring position (H2O)20 l
Maximun load25 kg
Motor rating output9 W
Direction of rotationright
Speed display set-valueTFT
Speed display actual-valueTFT
Speed adjustmentTurning knob
Speed range50 - 1,700 rpm
Setting accuracy speed10 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+28 K
Heat output600 W
Temperature display set-valueTFT
Temperature display actual-valueTFT
Temperature unit°C / °F
Heating temperature rangeRoom temp. + device self heating - 340 °C
Heat controlTurning knob
Temperature setting range0 - 340 °C
Temperature setting resolution of heating plate0.1 K
Connection for ext. temperature sensorPT100/PT1000 (dual sensor)
Characteristics in the medium with temperature sensor1l M50 Oil at H1500
Temperature medium max.270 °C
Temperature setting resolution of medium0.1 K
Adjustable safety circuit50 - 380 °C
Set-up plate materialtechnical enamel
Set-up plate dimensionsØ 135 mm
Intermittent modeyes
Viscosity trend measurementyes
Break detection stirring baryes
Timeryes
pH measurementyes / BNC socket female
Graph functionyes
Programsyes
Sensor in medium detection (Error 5)yes
Weighing functionyes
Weighing range10-5000 g
Weighing accuracy±(0.3%+2) g
Load capacity weighing function max.5 kg
Heating rate (1l H2O in H1500)7 K/min
Dimensions (W x H x D)160 x 85 x 270 mm
Weight2.7 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 42
RS 232 interfaceyes
USB interfaceyes
Voltage115 V
Frequency50/60 Hz
Power input650 W
