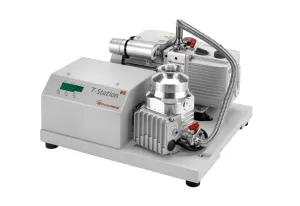

Edwards T-Station 85H Wet Turbo Station - NW40 200-240V

Marshall Scientific$9,847.00 (ex VAT)
item image

Description by the supplier

Edwards T-Station 85H Wet Turbo Station - NW40 200-240V



Ultimate Pressure

<5 x 10-8 mbar

Inlet Connection

NW40

Leak Tightness

<1 x 10-6 mbar ls-1



Features

- Single dedicated button to start/stop pumps; Easy to read accurate display

- Base plate includes rubber feet and cut-outs in the sides for manual handling

- The nEXT85 and nEXT300 turbomolecular pumps, XDD1 dry diaphragm pump and E2M1.5 backing pump are all user serviceable

- Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans

- All metal frame means rugged design that can take abuse without cracking or breaking

- Inlet flange options - Available with either an NW40, ISO63 or CF63 inlet flange to suit your application





nEXT T-StationThe Edwards turbomolecular pumping stations are a comprehensive range of products providing versatile vacuum solutions in many different applications. All our nEXT turbomolecular pumping stations are supplied fully assembled and ready to run straight out of the box with nEXT turbomolecular pumps and backing pumps that are user serviceable. There are 2 models in the turbomolecular pumping stations range the entry level T-Station 85 and the higher capacity T-Station 300.Both the T-Station 85 and the 300 come with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. With the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, the T-Station 85 ideal for general laboratory needs and the T-Station 300 extending the performance envelope for the R&D sector.nEXT T-Station 85Our T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines an nEXT85H turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1.INCLUDED:

The Edwards T-Station 85H Dry Turbo Station - NW40 200-240V includes:

- Power Cord

- One Year Manufacturer's Warranty

Product details
Ultimate Vacuum<5x10 -9 mbar
Pumping Speed47 ls-1
Compression ratio for N 2>1x1011
Backing pump speed 50Hz1.6 m3 h-1
Inlet FlangeDN 63 CF
Exhaust flange11 mm nozzle / 3/8" BSPP (G) Female
Noise level db(A)<56 ± 3dB(A) Declared dual number noise emission values in
Leak tightness<1x10-6 (mbar l/s-1)
Operating temperature range12 to 40°C
Dimensions (LxWxH)15.55 x 13.78 x 10.63 in. (39.5 x 35.0 x 27 cm)
Electrical Requirements1Ph 200-240V 50/60Hz
