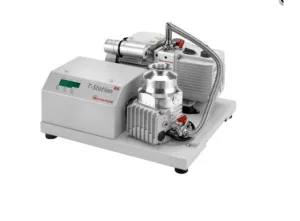

Edwards T-Station 85H Wet Turbo Station NW40, 100-120V
Ultimate vacuum
<5 x 10-8mbar
Pumping Speed for N2
47 ls-1
Back Pump Speed
1.6 m3h-1 at 50 Hz
Features
- Base plate includes rubber feet and cut-outs in the sides for manual handling, giving a compact low profile but stable design that can’t be knocked over
- All metal frame means rugged design that can take abuse without cracking or breaking
- E2M1.5 or XDD1 high capacity backing pumps giving the choice between an oil sealed pump or a totally dry diaphragm pump
- Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans
- Customer integrated control features:
- Single dedicated button to start/stop
- Easy to read accuracy display
- Ability to select vent mode where a TAV5 vent valve is fitted for automated venting with no user intervention
- Available with either an NW40, ISO63 or CF63 inlet flange to suit your application.
- User serviceable nEXT85H turbomolecular pump
T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines the nEXT85H turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1. The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, making the T-Station 85 is ideal for general laboratory needs.
INCLUDED:
The Edwards T-Station 85H Wet Turbo Station NW40, 100-120V includes:
- T-Station Pumping Station Base
- E2M1.5 Rotary Vane Pump
- nEXT85H Turbomolecular Pump with NW40 Inlet
- All Necessary Tubing and Cables for Turn-key Operation
- Operator's Manual
- 1 Year Manufacturer's Warranty
Ultimate Vacuum | <5 x 10-8mbar |
Pumping Speed | 47 ls-1 |
Compression ratio for N 2 | >1x1011 |
Backing Pump Speed 50Hz | 1.6 m3h |
Inlet Flange | DN 63 CF |
Exhaust flange | Fitted silencer or 1/8” BSP |
Noise level db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
Leak tightness | <1x10-6 (mbar l/s-1) |
Operating temperature range | 12 to 40°C |
Dimensions (LxWxH) | 15.55 x 13.78 x 10.63 in. (39.5 x 35.0 x 27 cm) |
Electrical Requirements | 1Ph 100-120V 50/60Hz |
