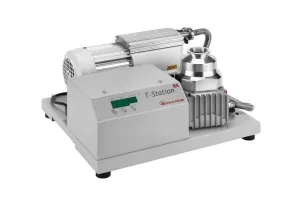

Edwards T-Station 85H Dry Turbo Station - ISO63 200-240V
Ultimate Pressure
<5 x 10-8 mbar
Inlet Connection
DN 63 ISO-K
Leak Tightness
<1 x 10-6 mbar ls-1
Features
- Single dedicated button to start/stop pumps; Easy to read accurate display
- Base plate includes rubber feet and cut-outs in the sides for manual handling
- The nEXT85 and nEXT300 turbomolecular pumps, XDD1 dry diaphragm pump and E2M1.5 backing pump are all user serviceable
- Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans
- All metal frame means rugged design that can take abuse without cracking or breaking
- Inlet flange options - Available with either an NW40, ISO63 or CF63 inlet flange to suit your application
T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines the nEXT85H turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1.
The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, making the T-Station 85 is ideal for general laboratory needs.INCLUDED:
The Edwards T-Station 85H Dry Turbo Station - ISO63 200-240V includes:
- Power Cord
- One Year Manufacturer's Warranty
Ultimate Vacuum | <5x10 -10 mbar |
Pumping Speed | 84 l/s -1 |
Compression ratio for N 2 | >1x10 11 |
Inlet Flange | DN 63 ISO-K |
Exhaust flange | Fitted silencer or 1/8” BSP |
Noise level db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
Leak tightness | <1x10 -6 (mbar l/s-1) |
Operating temperature range | 12 to 40°C |
Dimensions (LxWxH) | 15.55 x 13.78 x 10.63 in. (39.5 x 35.0 x 27 cm) |
Electrical Requirements | 1Ph 200-240V 50/60Hz |
