Edwards T-Station 85H Dry Turbo Station ISO63, 100-120V
Description from the supplier

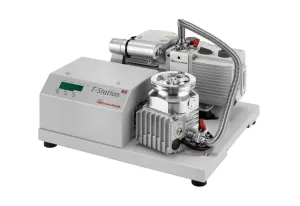

Edwards T-Station 85H Dry Turbo Station ISO63, 100-120V
Ultimate Pressure
<5 x 10-8 mbar
Inlet Connection
DN 63 ISO-K
Leak Tightness
<1 x 10-6 mbar ls-1
- Single dedicated button to start/stop pumps; Easy to read accurate display
- Base plate includes rubber feet and cut-outs in the sides for manual handling
- The nEXT85 and nEXT300 turbomolecular pumps, XDD1 dry diaphragm pump and E2M1.5 backing pump are all user serviceable
- Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans
- All metal frame means rugged design that can take abuse without cracking or breaking
- Inlet flange options - Available with either an NW40, ISO63 or CF63 inlet flange to suit your application
nEXT T-StationThe Edwards turbomolecular pumping stations are a comprehensive range of products providing versatile vacuum solutions in many different applications. All our nEXT turbomolecular pumping stations are supplied fully assembled and ready to run straight out of the box with nEXT turbomolecular pumps and backing pumps that are user serviceable. There are 2 models in the turbomolecular pumping stations range the entry level T-Station 85 and the higher capacity T-Station 300.
Both the T-Station 85 and the 300 come with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. With the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, the T-Station 85 ideal for general laboratory needs and the T-Station 300 extending the performance envelope for the R&D sector.
nEXT T-Station 85Our T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines an nEXT85H turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1.
- T-Station Pumping Station Base
- XDD1 Diaphragm Pump
- nEXT85H Turbomolecular Pump with ISO63 Inlet
- All Necessary Tubing and Cables for Turn-key Operation
- Operator's Manual
- 1 Year Manufacturer's Warranty
Product details
| Ultimate Vacuum | <5x10 -10 mbar |
| Pumping Speed | 84 ls -1 |
| Compression Ratio for N 2 | >1x10 11 |
| Backing Pump Speed 50Hz | 1.2 m 3 h-1 |
| Inlet Flange | DN 63 ISO-K |
| Exhaust Flange | Fitted silencer or 1/8” BSP |
| Noise Level db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
| Leak Tightness | <1x10 -6 (mbar l/s-1) |
| Operating Temperature Range | 12 to 40°C |
| Dimensions (LxWxH) | 15.55 x 13.78 x 10.63 in. (39.5 x 35.0 x 27 cm) |
| Electrical Requirements | 1Ph 100-120V 50/60Hz |
