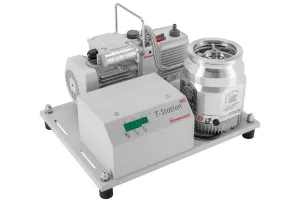

Edwards T-Station 300D Wet Turbo Station - CF100 200-240V
Edwards T-Station 300D Wet Turbo Station - CF100 200-240V
Ultimate Pressure
<5x10-10 mbar
Inlet Connection
DN 100 CF
Leak Tightness
<1x106 mbar l/s
Features
- Single dedicated button to start/stop pumps; Easy to read accurate display
- Base plate includes rubber feet and cut-outs in the sides for manual handling
- The nEXT85 and nEXT300 turbomolecular pumps, XDD1 dry diaphragm pump and E2M1.5 backing pump are all user serviceable.
- Integrated air cooler acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans
- All metal frame means rugged design that can take abuse without cracking or breaking.
- Available with either an NW40, ISO63 or CF63 inlet flange to suit your application.
nEXT T-StationThe Edwards turbomolecular pumping stations are a comprehensive range of products providing versatile vacuum solutions in many different applications. All our nEXT turbomolecular pumping stations are supplied fully assembled and ready to run straight out of the box with nEXT turbomolecular pumps and backing pumps that are user serviceable. There are 2 models in the turbomolecular pumping stations range the entry level T-Station 85 and the higher capacity T-Station 300.Both the T-Station 85 and the 300 come with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. With the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, the T-Station 85 ideal for general laboratory needs and the T-Station 300 extending the performance envelope for the R&D sector.nEXT T-Station 300Our T-Station 300 builds on the existing popular T-Station 85 platform, by replacing the nEXT85H with the nEXT300 turbomolecular pump providing a solutionfor customers and applications that require a higher pumping speed up to 300 ls-1.INCLUDED:
The Edwards T-Station 300D Wet Turbo Station - CF100 200-240V includes:
- Power Cord
- One Year Manufacturer's Warranty
| Ultimate Vacuum | <5x10 -10 mbar |
| Pumping speed for N 2 | 300 l/s |
| Compression ratio for N 2 | >1x10 11 |
| Backing pump speed 50Hz | 1.6 m3/h |
| Exhaust flange | 11 mm OD nozzle or ⅜" BSP |
| Noise level db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
| Leak tightness (mbar l/s) | <1x10 6 |
| Operating Temp. Range | +12 to +40 |
| Electrical Requirements | 1Ph 200-240V 50/60Hz |
