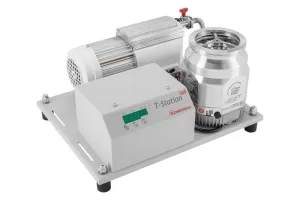

Edwards T-Station 300D Dry Turbo Station ISO100, 200-240V
Edwards T-Station 300D Dry Turbo Station ISO100, 200-240V
Ultimate Pressure
6×10⁻⁸ mbar
Inlet Connection
DN 100 ISO-K
Leak Tightness
<1x106 mbar l/s
Features
- Color touch screen control with local graphical display and audible leak detection
- Wireless models allow simultaneous control of up to 10 leak detectors
- Low weight and integrated carry handles which allow it to be bench top or trolley mounted
- Allows effective pump down of large of contaminate flows compatible with ELD500 and FLEX variants
- Standard sniffer line enables operation up to 4m from the ELD500. Longer sniffer lines of up to 50m can be used with the sniffer extender interface
- Ensured by class leading 180° mass spectrometer
nEXT T-StationThe Edwards turbomolecular pumping stations are a comprehensive range of products providing versatile vacuum solutions in many different applications. All our nEXT turbomolecular pumping stations are supplied fully assembled and ready to run straight out of the box with nEXT turbomolecular pumps and backing pumps that are user serviceable. There are 2 models in the turbomolecular pumping stations range the entry level T-Station 85 and the higher capacity T-Station 300.Both the T-Station 85 and the 300 come with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. With the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, the T-Station 85 ideal for general laboratory needs and the T-Station 300 extending the performance envelope for the R&D sector.nEXT T-Station 300Our T-Station 300 builds on the existing popular T-Station 85 platform, by replacing the nEXT85H with the nEXT300 turbomolecular pump providing a solution for customers and applications that require a higher pumping speed up to 300 ls-1.INCLUDED:
The Edwards T-Station 300D Dry Turbo Station ISO100, 200-240V includes:
- One Year Manufacturer's Warranty
| Ultimate Vacuum | <6×10⁻⁸ mbar mbar |
| Pumping Speed | 300 l/s |
| Compression ratio for N 2 | >1x10 11 mbar |
| Exhaust flange | 11 mm OD nozzle or ⅜" BSP |
| Noise level db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
| Leak tightness | <1x10 6(mbar l/s) |
| Operating temperature range | 12 to 40°C |
| Electrical Requirements | 1Ph 200-240V 50/60Hz |
