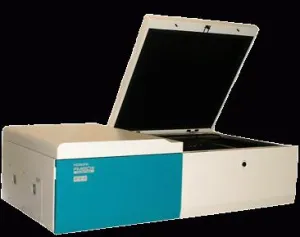

Hitachi FMBIO III Plus Laser Imaging System

The FMBIO III Plus from Hitachi is a state-of-the-art laser-based imaging system designed to provide high-resolution, multi-color, multiplexed images with its superior four-color fluorescence detection capability. This versatile instrument is ideal for applications such as genotyping, differential display, mutation discovery, human identification, Southern blotting, microarrays, and ELISA. It supports a wide array of gel, membrane, microplate, and microarray-based techniques accommodating DNA, RNA, and protein samples efficiently.

Noteworthy features include the largest scanning area in the market (55cm x 40cm) with adjustable scanning zones and multiple excitation lasers: green (532nm), red (635nm), and optional blue (488nm). The FMBIO III Plus boasts remarkable sensitivity, with detection capabilities down to 0.06 ng/band for SYPRO dyes. Its autofocus function covers a broad range while offering selectable resolutions from 200 to 25 micrometers, ensuring unparalleled image quality. The built-in high-power, diode-pumped solid-state lasers eliminate the need for an additional power supply or cooling system.

Specifications reveal a maximum capture size of 400mm x 550mm and a capture resolution ranging from 25 to 200 micrometers, with 16-bit gradation output. Filters enable two-color simultaneous separations or four-color simultaneous sets. The device outputs files in TIFF format and interfaces via SCSI, compatible with Windows 2000 Professional. The FMBIO III Plus measures 1,310mm in width, 750mm in depth, and 370mm in height, weighing around 85kg, with energy consumption at 125W and a universal power source of AC100-240 50/60Hz.
