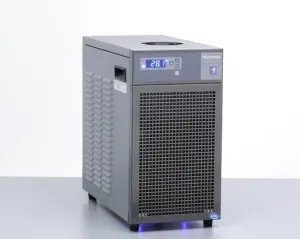

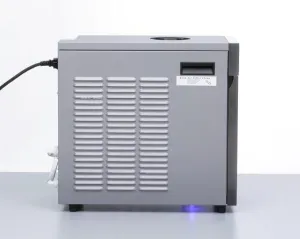

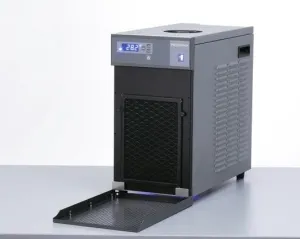

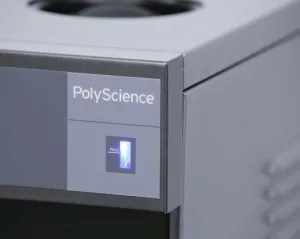

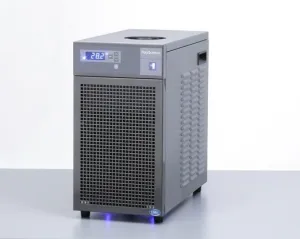

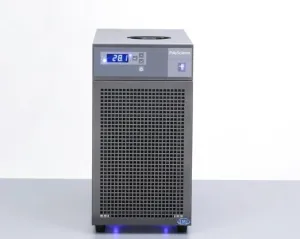

Polyscience LM61GX1A110C LM6 Benchtop Chiller , -10°C to 30°C, 560W; 120V

Marshall Scientific$4,099.00 (ex VAT)
item image

Description by the supplier

Polyscience LM61GX1A110C LM6 Benchtop Chiller with Centrifugal Pump, 120V, 60Hz3D Visualization of the Polyscience Benchtop ChillerThe rendered image can be freely rotated in a full 360-degree view, allowing you to zoom in, pause, and explore every angle. For enhanced detail, the rendering can also be displayed in full-screen mode.

This 3D model is designed exclusively for visualization purposes and may not accurately represent the actual appearance of your product.

Your browser does not support iframes.



LM-Series and MM-Series Compact Chillers provide cooling power for demanding applications and serve as economical alternatives to tap water cooling systems. They feature a microprocessor-based controller, digital temperature display (C or °F), and simple operation and maintenance.

To optimize cooling efficiency and performance, these sophisticated Chillers also feature a modulated refrigeration system. As a result, temperature stability is greatly enhanced and compressor life extended.


LM-Series and MM-Series Chillers are equipped with a magnetic drive centrifugal pump. Wetted parts within the recirculation system are brass, copper, stainless steel, EPDM rubber, Alcryn, nylon, PVC, and polyethylene.


Features


Optimized for performance at low temperatures

Ideal for benchtop rotary evaporators

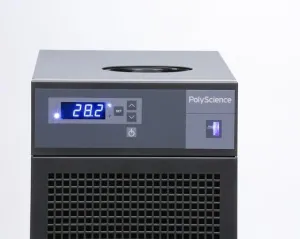

Large, easy to read LED display

Space-saving design

Cooling at ambient temperatures as high as 35C

Low flow shutoff and alarm, high and low temperature alarms

Simple setup, operation, and maintenance

Choice of two different centrifugal pumps

Fluid level indicator

RS232 communication and external water filter optional


INCLUDED:

The Polyscience LM61GX1A110C LM6 Benchtop Chiller , -10°C to 30°C, 560W; 120V includes:

- Power Cord

- Operator's Guide

- Manufacturer's Documentation

- 2 Year Manufacturer's Warranty

Product details
DescriptionLM Series 1/3 HP Benchtop Chiller, Centrifugal Pump; 5.1 psi; 7.9 l/min
DisplayLED
ConnectivityOptional: RS232
Working Temperature Range C-10° to 30°
Temperature Stability C±0.1°
Temperature Calibration Capability1-point
Pump TypeCentrifugal
Part NumberLM61GX1A110C
Maximum Pressure (psi)5.1
Maximum Pressure (bar)0.35
Maximum Pressure Flow Rate (gpm)2.10
Maximum Pressure Flow Rate (l/min)7.9
Cooling Capacity @ -10C (W)230
Cooling Capacity @ -5C (W)295
Cooling Capacity @ 0C (W)350
Cooling Capacity @ +10C (W)470
Cooling Capacity @ +20C (W)560
Cooling Capacity @ +30C (W)650
Included HardwareTwo sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
Electrical Requirements (VAC/Hz/Ph/A)120/60/1/12
Regulatory ApprovalsTUV
