Polyscience CA03A1P1-41AA1N Durachill Chiller , -10°C to 70°C, 1400W; 120V

Marshall Scientific$6,946.00 (ex VAT)
item image

Description by the supplier

Polyscience CA03A1P1-41AA1N Durachill Chiller with Positive Displacement Pump, -10 to 70°C, 700 to 2900W, 120VACFeatures

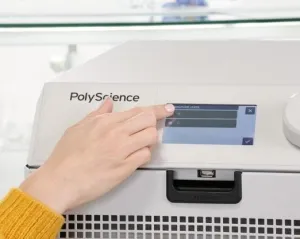

- Large, full-color touchscreen display with intuitive interface and support for five different languages

- Compact, portable design takes up less floor space

- Cooling at ambient temperatures as high as 30°C

- Choice of pumps and compressor size

- DynamicFilter™ self-cleaning filter system

- Front fill reservoir

- Liquid level monitoring to prevent pump failure

- Ultraviolet anti-biological light system

- User-adjustable temperature, pressure, and flow rate alarms

- Heat up to 70°C, without additional options; ideal for applications, such as lasers, that must be brought to a temperature above ambient before operation can begin

- External temperature tracking and communications capability (optional)

- Cool Command™, WhisperCool®



Your browser does not support iframes.*3D model is solely for visualization and may not depict the actual appearance of your product.

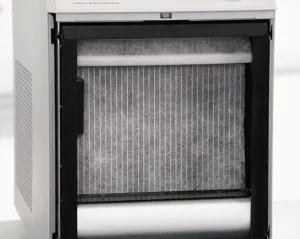

DuraChill® is preprogrammed to change its own air filter once a month for a two year period and can be adjusted to suit your operating environment.

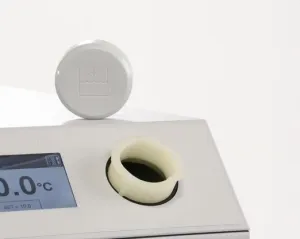

DuraChill Chillers offer a conveniently located front fill reservoir. You no longer have to go to the back of the chiller top open to fill the reservoir.


These high-performance chillers utilize Polyscience's exclusive patent-pending Whispercool noise reduction system.



Stableand reliable cooling for many common heat removal applications, including laseretching, AA furnaces, ICP, rotary evaporators, vacuum systems, reactionvessels, plasma etching, and condenser cooling.



Click Here to View Product Video





INCLUDED:

The Polyscience CA03A1P1-41AA1N Durachill Chiller , -10°C to 70°C, 1400W; 120V is brand-new .

Includes:

- Power Cord

- Operator's Guide

- Manufacturer's Documentation

- Full 2 Year Parts and Labor Warranty

- Two sets of Inlet/Outlet Adapters: ½ inch male NPT x ½ inch hose barb and ½ inch male NPT x 5/8 inch hose barb



Polyscience CA03A1P1-41AA1N Durachill Chiller with Positive Displacement Pump, -10 to 70°C, 700 to 2900W, 120VAC Specifications Part NumberCA03A1P1-41AA1NCooling Capacity @ 20°C1.4 kWCooling Capacity @ 10°C0.99 kWCooling Capacity @ 0°C0.53 kWFluid Temperature Range-10 to 70°C / 14 to 158°FTemperature Stability±0.1°CTemperature Display Units°C or °FDisplayable Pressure UnitsPSI or kPaPump Inlet and Outlet½ inch female NPTConnectivityRS-232, USB Serial Port Emulation, USB TMC, Dry Contact On/Off/StatusPump Pressure Range45 to 100 psi / 310 to 689 kPaMaximum Pump Flow Rate2.6 gpm / 9.8 lpmPower Requirements120V, 60Hz, 16.2AShipping Weight169 lbs / 76.7 kgShipping Dimensions33 x 22 x 33 in / 84 x 56 x 84 cmComparison of ModelsSpecificationPolyscience CA02A1P1-41AA1NPolyscience CA02A1T1-41AA1NPolyscience CA03A1P1-41AA1NPolyscience CA03A1T1-41AA1NPolyscience CA05A1P1-41AA1NPolyscience CA05A1T1-41AA1NPolyscience CA10A3P2-41AA1NPolyscience CA10A3T1-41AA1NCooling Capacity @ 20°C (kW)0.85 kW0.85 kW1.4 kW1.4 kW1.74 kW1.74 kW2.9 kW2.9 kWCooling Capacity @ 10°C (kW)0.6 kW0.6 kW0.99 kW0.99 kW1.29 kW1.29 kW1.93 kW1.93 kWCooling Capacity @ 0°C (kW)0.4 kW0.4 kW0.53 kW0.53 kW0.77 kW0.77 kW1.0 kW1.0 kWFluid Temperature Range (°C/°F)-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°F-10 to 70°C / 14 to 158°FPump Pressure Range (psi/kPa)45 to 100 psi / 310 to 689 kPa20 to 90 psi / 138 to 689 kPa45 to 100 psi / 310 to 689 kPa20 to 90 psi / 138 to 689 kPa45 to 100 psi / 310 to 689 kPa20 to 90 psi / 138 to 689 kPa20 to 100 psi / 138 to 689 kPa20 to 100 psi / 138 to 689 kPaMaximum Pump Flow Rate (gpm/lpm)2.6 gpm / 9.8 lpm3.5 gpm / 13.2 lpm2.6 gpm / 9.8 lpm3.5 gpm / 13.2 lpm2.6 gpm / 9.8 lpm3.5 gpm / 13.2 lpm3.5 gpm / 13.2 lpm3.5 gpm / 13.2 lpmPower Requirements (Voltage/Hz)120V, 60Hz120V, 60Hz120V, 60Hz120V, 60Hz120V, 60Hz120V, 60Hz230V, 60Hz230V, 60Hz.comparison-table tr td:nth-child(4) { background-color: #fffacd; }

Product details
Part NumberCA03A1P1-41AA1N
Cooling Capacity @ 20°C1.4 kW
Cooling Capacity @ 10°C0.99 kW
Cooling Capacity @ 0°C0.53 kW
Fluid Temperature Range-10 to 70°C / 14 to 158°F
Temperature Stability±0.1°C
Temperature Display Units°C or °F
Displayable Pressure UnitsPSI or kPa
Pump Inlet and Outlet½ inch female NPT
ConnectivityRS-232, USB Serial Port Emulation, USB TMC, Dry Contact On/Off/Status
Pump Pressure Range45 to 100 psi / 310 to 689 kPa
Maximum Pump Flow Rate2.6 gpm / 9.8 lpm
Power Requirements120V, 60Hz, 16.2A
Shipping Weight169 lbs / 76.7 kg
Shipping Dimensions33 x 22 x 33 in / 84 x 56 x 84 cm
