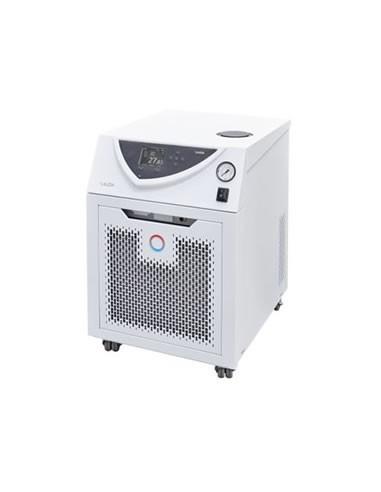

Introducing the LAUDA Variocool: These exceptional circulation chillers range between 1200W to 10 kW. Perfectly designed to dissipate process heat in laboratories, smaller plants, and production units, these devices function efficiently between -20°C and +80°C.
LAUDA Variocool circulation chillers are renowned for their compact design coupled with versatility, stemming from a multitude of options. Their core functionality revolves around circulation thermostats that are apt for non-flammable heat transfer liquids within a median temperature radius. The updated control panel design and vibrant TFT display augment the ease of making necessary adjustments in a straightforward manner.
Clients can avail a broad range of options in power output (kW), pump pressure or flow rate, and tank size, creating a tailor-fit solution for their specific needs. Connect with us to get a thorough understanding of the model that aligns best with your needs.
All models (save for VC 600) are accessible in either air-cooled or water-cooled (W) formats and come equipped with sturdy swivel castors. Moreover, high-performance circulation chillers from VC 5000 onwards can either have sound insulation or provision for outdoor installation as an added option.
Performance benchmarks for the Variocool VC 3000 model (measured with ethanol) are as follows:
- 20°C: 3.00 kW
- 10°C: 2.40 kW
- 0°C: 1.68 kW
- -10°C: 1.03 kW
- -20°C: 0.60 kW
Noteworthy Features:
- Adjustable bypass for pressure restrictions.
- Top filling opening, convenient drain cock positioned at the back.
- Integrated programming device with 150 segments, divisible into 5 distinct programs.
- Electronic level indicator equipped with a low-level alarm.
- SmartCool system incorporates energy-saving digital control of cooling, which includes automatic compressor control.
- Displays temperature graphs.
Specific Applications Include:
- Refractometers
- Polarimeters
- Disposable bioreactors
- Food production extruders
- Micro reactors
- Reactive control in chemical/pharmaceutical contexts.
- Climatic chambers
- Spatial simulations
- Battery tests for electric mobility
- Test benches
- Stress tests
- Crystallization regulation
- Lyophilization
- Microstructures
- Painting plants.
Included Accessories:
- Pump connection nozzles
- Screw cap
User-friendly control panel with an extensive, vivid TFT display provides ample information. The front panel of the LAUDA Variocool is effortlessly removable, which ensures speedy maintenance and modifications. Vast upgradability with multiple interfaces (analog module, contact module, RS 232/485, Profibus, Ethernet-USB module) is another attribute. Each model features a USB Type B Interface as well as conveniently placed connections at the back. The pump performance graph for LAUDA Variocool heating chillers efficiently illustrates the device's performance.
Temperature °C | da -20°C a 80°C |
External dimensions mm L x P x A | 550×650×970 |
Pump pressure max. bar | 3.2 bar |
Pump delivery max. l/min. | 37 L/min |
Tank volume l | 33 L max. |
Tank volume l | 20 L min. |
Temperature stability | 0.05 K |
Power W | 1.5 kW heating, 3.00 kW cooling at 20°C |
Series | Variocool |
Various | IP 32 protection |
Weight kg | 93 |
Supply | 230 V; 50 Hz |
