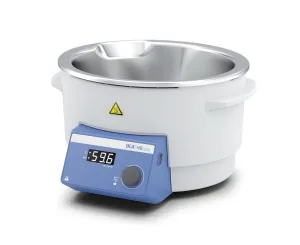

IKA HB Eco Heating Bath
Heat Temp. Range
Room Temp. to 99°C
Filling Volume Max.
4 l
Material in Contact W/ Medium
SS 1.4404
Features
- 4 l bath volume
- Max. media temperature: 99 °C
- Ergonomic handles for easy handling
- Temperature display
- Alternating display of set-point/ actual temperature
- USB interface
- Stainless Steel 1.4404 construction to ensure durability
The IKA HB Eco Heating Bath is a compact and ergonomic heating bath with a 4-liter volume, designed for efficient heating up to a maximum media temperature of 99 °C. It features ergonomic handles for easy handling and an alternating display of set-point and actual temperatures for precise monitoring. The bath has a USB interface for connectivity and data transfer. With a heat output of 1400 W, the heating temperature range is from room temperature to 99 °C, controlled by a turning knob with a set temperature resolution of 1 ±K. Made from stainless steel 1.4404, the bath is durable and resistant to corrosion. It includes a fixed safety circuit at 109 °C and complies with DIN 12876 Class I standards. The device dimensions are 330 x 190 x 325 mm, and it weighs 3.9 kg. Suitable for ambient temperatures of 5 - 40 °C and relative humidity up to 80%, the IKA HB Eco Heating Bath is a reliable and user-friendly tool for various laboratory heating applications.
Heat output | 1400 W |
Heating temperature range | room temp. - 99 °C |
Heat control | Turning knob |
Set temperature resolution | 1 ±K |
Controller oscillation (3 l water / 90 °C) | 1 ±K |
Absolute deviation/mean (3l water / 90 °C) | 2 ±K |
Speed display | LED |
Filling volume max. | 4 l |
Filling point min. | 60 mm |
Material in contact with medium | stainless steel 1.4404 |
Fixed safety circuit | 109 °C |
Class designation acc. DIN 12876 | I |
Outer diameter | 257 mm |
Inner diameter | 225 mm |
Outer height | 190 mm |
Inner height | 130 mm |
Dimensions (W x H x D) | 330 x 190 x 325 mm |
Weight | 3.9 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
USB interface | yes |
Voltage | 200 - 240 / 100 - 120 V |
Frequency | 50/60 Hz |
Power input | 1450 W |
Power input standby | 3 W |
