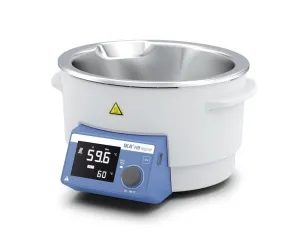

IKA HB Digital Heating Bath
Filling Volume Max
4 l
Heating Temp. Range
Room Temp. to 180°C
Heat Control
Turning Knob
Features
- 4 l bath volume
- Max. media temperature: 180 °C
- Ergonomic handles
- Key button to lock heating bath temperature
- Clear, black-and-white display
- Safety operating modes A, B, C
- Permanent set-point/ actual temperature display
- USB interface
The IKA HB Digital Heating Bath offers a 4-liter bath volume and a maximum media temperature of 180 °C. It features ergonomic handles and a key button to lock the heating bath temperature. The clear, black-and-white display provides a permanent set-point and actual temperature display. Equipped with safety operating modes A, B, and C, the bath ensures secure operation. It also includes a USB interface for easy connectivity. The heating range is from room temperature to 180 °C, with precise control via a turning knob and a resolution of 1 ±K.
Heat output | 1400 W |
Heating temperature range | room temp. - 180 °C |
Heat control | Turning knob |
Set temperature resolution | 1 ±K |
Controller oscillation (3 l water / 90 °C) | 1 ±K |
Absolute deviation/mean (3l water / 90 °C) | 2 ±K |
Controller oscillation (3l Silicone oil / 50mPas / 150°C) | 2 ±K |
Absolute deviation/mean (3 l Silicone oil / 50mPas/ 150°C) | 4 ±K |
Speed display | LCD |
Filling volume max. | 4 l |
Filling point min. | 60 mm |
Material in contact with medium | stainless steel 1.4404 |
Fixed safety circuit | 190 °C |
Adjustable safety circuit | 50 - 190 °C |
Class designation acc. DIN 12876 | II |
Outer diameter | 257 mm |
Inner diameter | 225 mm |
Outer height | 190 mm |
Inner height | 130 mm |
Dimensions (W x H x D) | 330 x 190 x 325 mm |
Weight | 3.9 kg |
Permissible ambient temperature | 5 - 40 °C |
Permissible relative humidity | 80 % |
Protection class according to DIN EN 60529 | IP 21 |
USB interface | yes |
Voltage | 200 - 240 / 100 - 120 V |
Frequency | 50/60 Hz |
Power input | 1450 W |
Power input standby | 3 W |
