Siemens RAPIDLab 348EX Blood Gas System

The Hitachi 917 is an automated biochemistry analyser used by medical laboratories to process biolog (more)ical fluid specimens, such as urine, cerebrospinal fluid and most commonly, blood. The 917 has two trays for racks, plus a stat rack. Racks that hold five test tubesslide in on the left side of the machine. There are two reagents carousels on the right side of the 917. In the centre, towards the back, are the reaction vessels, where the chemical reactions take place.

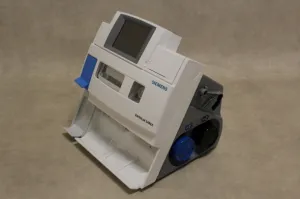

The RAPIDLab 348EX Blood Gas System is the cost-effective solution for smaller laboratories tasked w (more)ith the challenge of performing fast-turnaround critical care tests. Fully-automated operation supports low-to-medium throughput on an easy-to-use analyzer that’s ready to generate accurate, on-demand results when clinicians need them, with a minimum of operator involvement. Measurable Parameters Blood Gas: pH, pCO2, pO2 Measurable Parameters Electrolytes: Na+, K+, Ca++ or Cl– Measurable Parameters Hematocrit: HCT Calculated Parameters: O2SAT, O2CT, HCO3-act, HCO3-std, ctCO2, BEb, BEecf, pO2(A-a), pO2 (a/A), pO2/FiO2, Ca++(7.4), Anion Gap Sample Size: Syringe; 95 µL, Capillary; 95 µL, Microsample mode; 50 µL Sample Type: Whole blood, Dialysate fluid Analysis time: Approximately 60 seconds to result Calibration: Automatic or on demand Input Temperature: 10.0°C–43.9°C Input Hemoglobin: 2.0–25.0 g/dL Input FIO2: 15.0%–100.0% Input Patient/Operator IDs: Up to 16 characters (alphanumeric) Input Sample location: Radial, brachial, femoral, cord, arterial line (with RAPIDComm Data Management System (not inlcuded)) Dimensions (WxDxH): 385 x 353 x 382 mm Weight: 9.4 kg

FURTHER DETAILS TO FOLLOW

Manufacturer: Wavetek / Pacific Measurements USA Model: Power Detector Cable 12868 Description: This (more) Power Detector Cable allows power detectors with BNC Jack output connectors to be connected to Pacific Measurement Model 1038 Measurement System. It is useful for connecting to various RF crystal detectors supplied by several manufacturers. It is also useful for connecting to Return Loss Bridges which include a detector as part of the RF structure. The BNC input connector is fastened to a metal block which includes a temperature sensing thermistor and a low-pass filter. The thermistor allows the circuits of the Model 1038 System to compensate for the temepraturedependant characteristics of the detector: The low-pass filter removes leakage RF signals from the detector output, thus assuring that the signal from the detector will not be affected by resonances in the interconnecting cable. Detectors with negative output voltages must be used with the Model 1038 Measurement System. Model Number: 12868Connector: BNC FemaleFrequency Range: 1 MHz - 18 GHzMax. Input 5VLength: 1,2m (4 ft) Items delivered: - Power Detector Cable 12868 The item is in good cosmetic condition and 100% functional tested
