LAUDA Proline PV 24 heating thermostat

Jointlab srl€9,768.00
(€11,623.92 incl. VAT* )* - if applicable
item image

Description by the supplier

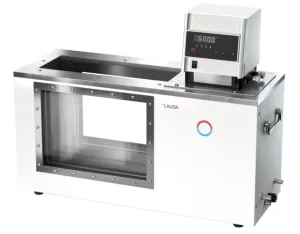

The Proline Heating Thermostat with Tank


The Proline clear-view LAUDA thermostats are expertly designed for the explicit observance of subjects, offering exemplary use with LAUDA Scientific PVS or iVisc automatic viscometer. These revolutionary thermostats guarantee exceptional temperature stability across a comprehensive temperature range, ensuring precision viscosity determination. The innovative two-chamber design sustains a steady liquid level in the measuring chamber, irrespective of the medium's volume and temperature.


To cater for a wide range of applications that require low-temperature measurements, the PVL models are equipped with five layers of insulating glass, ensuring accurate readings down to -40° or -60°C. This is made possible when a low-temperature chiller or thermostat is utilized.


For added versatility, these thermostats come with two distinct control units. The Master version is specifically designed for applications that demand minimal parameter changes. On the other hand, the detachable Command operating unit (PV C models) includes an intuitive graphic LCD display for optimal operating convenience and programming functionality.


Highlighted Features

- Integrated LAUDA Vario Flex pump (pressure pump), offering a selection of eight different power levels.

- Standard cooling coil with the provision for an extra cooler.


Complementary Accessories

- All necessary fittings for pump connection and cooling coil.


Further enriching your laboratory equipment, the Proline PV 24 model comes with the following specific features:


- Minimum tank volume of 19 L and maximum tank volume of 24 L.

- Handy tank opening measurements of 405 x 135 mm.

- A bowl depth of 320 mm with a usable depth of 285 mm.

- Tank upper height is 390 mm.

- Master control panel including calibration point, timer, under and over-temperature alarms, with digital indicators.

- Pump pressure maximum 1.1 bar.

- A water-cooled temperature range spanning from 20°C up to 230°C.

- Operating temperature range from -30°C to 230°C.

- Pump connectors M16 x 1

- 13 Ø fitting.

Product details
Temperature °Cfrom 30°C to 230°C
External dimensions mm L x P x A740x282x590
Pump pressure max. bar0.8 bar
Pump delivery max. l/min.32 L/min
Tank volume l24 L max.
Power W3.6 Kw
SeriesProline
Weight kg36
Supply230 V / 50-60 Hz
