LAUDA Proline PV 24 C heating thermostat

Jointlab srl€10,560.00
(€12,566.40 incl. VAT* )* - if applicable
item image

Description by the supplier

Rewritten Text:


Introducing the Proline Heating Thermostat with Tank from LAUDA. This sophisticated device is optimally designed for direct visual inspection of objects, making it an excellent match for use with the LAUDA Scientific PVS or iVisc automatic viscometer. Ensuring necessary temperature stability for precise viscosity determination throughout its entire temperature range, this device proves its dependability.

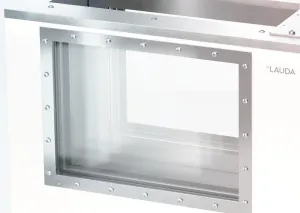

The two-chamber principle offers a constant fluid level in the measurement chamber, unaffected by changes in the medium volume or temperature. The PVL models, featuring five layers of insulating glass, are appropriate for low-temperature assessments as far down as -40° or -60°C when associated with a low-temperature chiller or thermostat.


We provide two different control units for this thermostat. The Master variant is developed for applications where parameters are altered infrequently. The Command operating unit (PV C models), removable for convenience and presenting a graphic LCD screen, ensures an enhanced user experience and optimal programming control.


Prominent Features:

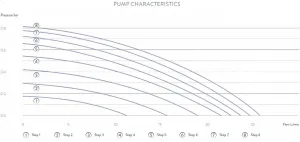

- Features the state-of-the-art LAUDA Vario Flex pump (pressure pump) with eight selectable power levels.

- Standard fitted cooling coil with attachments for supplementary cooler.


Included Accessories:


- Equipment for pump connections and cooling coil.


Specifics of the Proline PV 24 model:


- Minimal tank volume of 19 L, with a maximum capacity of 24 L.

- Tank opening measures 405 x 135 mm.

- Bowl depth of 320 mm.

- Usable depth extends 285 mm.

- Upper height of the tank stands at 390 mm.

- The most technologically advanced Command-control panel in the LAUDA range, detachable for user convenience and featuring an LCD display.

- Pump pressure maxes out at 1.1 bar.

- Water-cooled temperature range spans from 20°C to 230°C.

- Operating temperature range extends from -30°C to 230°C.

- Pump connectors of M16 x 1 dimensions.

- 13Ø fitting.

Product details
Temperature °Cfrom 30°C to 230°C
External dimensions mm L x P x A740x282x646
Pump pressure max. bar0.8 bar
Pump delivery max. l/min.32 L/min
Tank volume l24 L max.
Power W3.6 Kw
SeriesProline
Weight kg36
Supply230 V / 50-60 Hz
