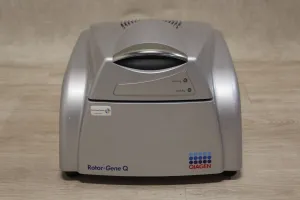

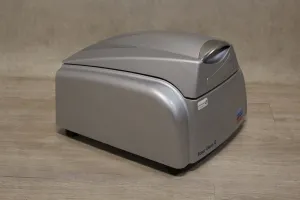

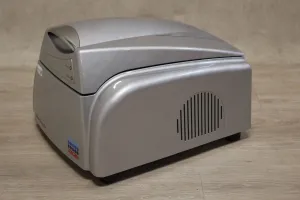

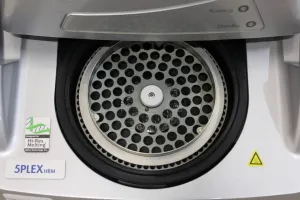

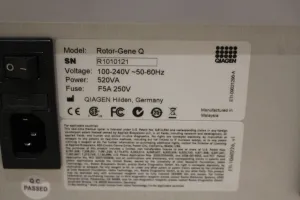

QiaGen Rotor-Gene Q (CA) Real-time PCR Cycler

Sample capacity: one 384 well PCR plate Temperature control range of the block: 4°C to 99°C Gradient (more) range: 1°C to 20°C Temperature range of the gradient: 30°C to 99°C Temperature control range of the lid: 37°C to 110°C Block hmogeneity (at 35°C): ≤± 0.3°C Block hmogeneity (at 90°C): ≤± 0.4°C Control accuracy: ± 0.2°C Heating rate: 4°C/s Cooling rate: 3°C/s Dimensions (WxDxH): 260 x 415 x 370 mm Weight: 18.5 kg Required software and/or control unit not included

See attached document for more information.

qPCR Laboratory Workstation consisting of: Myra Liquid Handling System Mic qPCR Cycler Myra Liquid H (more)andling System: Position control: Closed loop, 100 μm resolution Calibration: High precision camera Pipetting volume range: 1 – 50 μL Liquid level detection: Pressure sensing Tips per rack: 384 Dispense modes: Single Precision: 1 μL; < 10% CV, 5 – 50 μL; < 1% CV Accuracy: 1 μL; < 10%, 5 – 50 μL; < 1% Tip disposal type: Internal enclosed waste container HEPA filter: 99.98% at 0.3 μm UV lamp: High intensity 70 mW 280 nm UV LED Dimensions (HxWxL): 310 x 350 x 460 mm Weight: 9kg Mic qPCR Cycler: Temperature Accuracy: ±0.25°C Temperature Uniformity: ±0.10°C Ramp Rates: Heating 5°C/s, Cooling 4°C/s Temperature Input Range: 35 to 99°C Detectors: Photodiode per channel Channels: 2 Excitation Sources: High power LED for each channel Channels: Green – Ex 465nm – Em 510nm, Yellow – Ex 540nm – Em 570nm, Orange – Ex 585nm – Em 618nm, Red – Ex 635nm – Em 675nm Samples per Instrument: 48 Reaction Volume Range: 5 to 30 µL Acquisition Time: 1 second Dimensions (WxDxH): 150 x 150 x 130 mm Weight: 2 kg

FiveGo pH meter F2-Std-Kit METTLER TOLEDO SIMPLICITY AND SOLIDITY AT AN AFFORDABLE PRICE Ergonomic,  (more)robust and intuitive, FiveGo™ portable meters offer a quality solution for your mobile applications in the laboratory, on the production line and outdoors. COMPACT, LIGHTWEIGHT AND ROBUST PH METER The compact design of the FiveGo™ guarantees the optimization and simplification of the measurements obtained in the field. Compact, lightweight and rugged, this portable meter is perfect for mobile applications. COMPACT Measuring 188 x 77 x 33 mm, this tool is perfectly compact and optimized for field use. LIGHT Designed for one-handed use, the FiveGo™ series meters weigh 0.26 kg, making them easy to transport. uGo™ TRANSPORT CASE It offers ideal protection and is the most suitable container for the pH meter, the sensor and all the accessories necessary to carry out regular outdoor measurements. INTUITIVE AND SIMPLE TO USE A large, well-structured display for easy viewing, the intuitive organization of the instrument buttons and the simple menu ensure that a measurement can be performed with just a few clicks. WATERPROOF IP67 waterproof protection allows the FiveGo™ meter to withstand humid and harsh environments. Thanks to the compact transport case, FiveGo™ is the ideal partner for any outdoor measurement. Specifications - FiveGo pH meter F2-Std-Kit Parameter: pH; ORP Channel: Single channel Kit version: Ready-to-use measurement kit Sensor: LE438 IP67 PH measuring range: 0...14 PH Resolution: 0.01 pH accuracy (±): 0.01 mV measurement range: 0 MV Resolution: 1 VM accuracy (±): 1 Temperature range (2): 0°C...100°C Temperature resolution: 0.1°C Temperature accuracy (±): 0.5°C. Memory capacity: 200 measurements Languages: English Memory size: 200 measurements Degree of protection Watertight and dustproof (IP67) Sensor included: generalist sensor Compatible with Intelligent Sensor Management (ISM) n Meter Type: Single Channel Portable Portable meter Yes mV measuring range -1,999,000–1,999,000

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

Solvent delivery method: Parallel-type double plunger Plunger capacity: 10µL Maximum discharge press (more)ure: 40MPa Flow-rate setting range: 0.0001 to 10.0000 mL/min Flow-rate accuracy: No more than 1% or 0.5µL/min, whichever is greater (0.01 to 2 mL/min.) Flow-rate precision: No more than 0.06% RSD or 0.02 min SD, whichever is greater Pulsation: 0.1 MPa (for water at 1.0 mL/min. and 7MPa) Constant-pressure solvent delivery: Supported Plunger rinsing mechanism: Manual rinsing or automatic rinsing using optional product Safety measures: Liquid-leakage sensor, high-pressure/low-pressure limits Gradient type: Low-pressure mixing Number of mixed solvents: 4 max Dimensions (WxHxD): 260 x 140 x 420 mm Weight: 10 kg

Manufacturer: WAB Willy A. Bachofen AG Model: TURBULA® T2F three-dimensional Shaker Mixer MFG date:  (more)2010 Description: The TURBULA® three-dimensional shaker mixer is used for homogeneous mixing of powdery substances with different specific weights and particle sizes. The mixing basket can hold any form of container from test tubes up to containers having a maximum volume of 2 litres. The containers are secured by twisted rubber clamping rings. The basket movement is driven by a belt drive and an eccentric gear. It is also possible to mix wet and dry components or different wet components. The production process is hygienic and dust-free because the product is mixed in its own closed container. The exceptional efficiency comes from the use of rotation, translation, and inversion according to the Schatz geometric theory. The mixing container is set into three-dimensional movement that exposes the product to always changing, rhythmically pulsing motion. TURBULA® shaker mixer is used whenever minimum mixing times together with fulfillment of the highest homogeneity standards are required - in all industries, in research and development, and in production plants. Fields of application: - Diamond tools - Electrotechnology - Sintered metals - Ceramic industry - Cosmetic industry - Pharmaceutical industry - Chemical industry - Food industry - Analysis Specifications: - Minimum machine maintenance - Hygienic and dust-free processing - Easy cleaning - Minimum shear force - Producing dry-to-wet and wet-to-wet mixtures - Container volume of up to 2 litres - The rotational speed can be varied by adjusting the position of the round drive belt on the 5-step pulleys. - Time-saving, fast exchange of the container due to simple and fast mounting of the container. - Excellent homogeneity of the mixture due to interaction of rotation, translation and inversion as per the geometric theory according to Schatz. Features: - Motor: 0.18 kW - Connections: 1 x 220-240, 50/60 - Speed: 23/34/49/72/101 min-1 - Standard container sizes: max. 2 l - Container sizes with rubber clamping rings: max. Ø 130 x 215 mm - Dimensions of the machine (L x W x H): 501 x 608 x 393 mm - Weight of the machine: 37,5 kg - Weight of the operating unit: 4,4 kg Items delivered: - WAB TURBULA® T2F Shaker Mixer - Power Supply Condition: The entire system is in good cosmetic condition, 100 % functional tested and runs smoothly.
