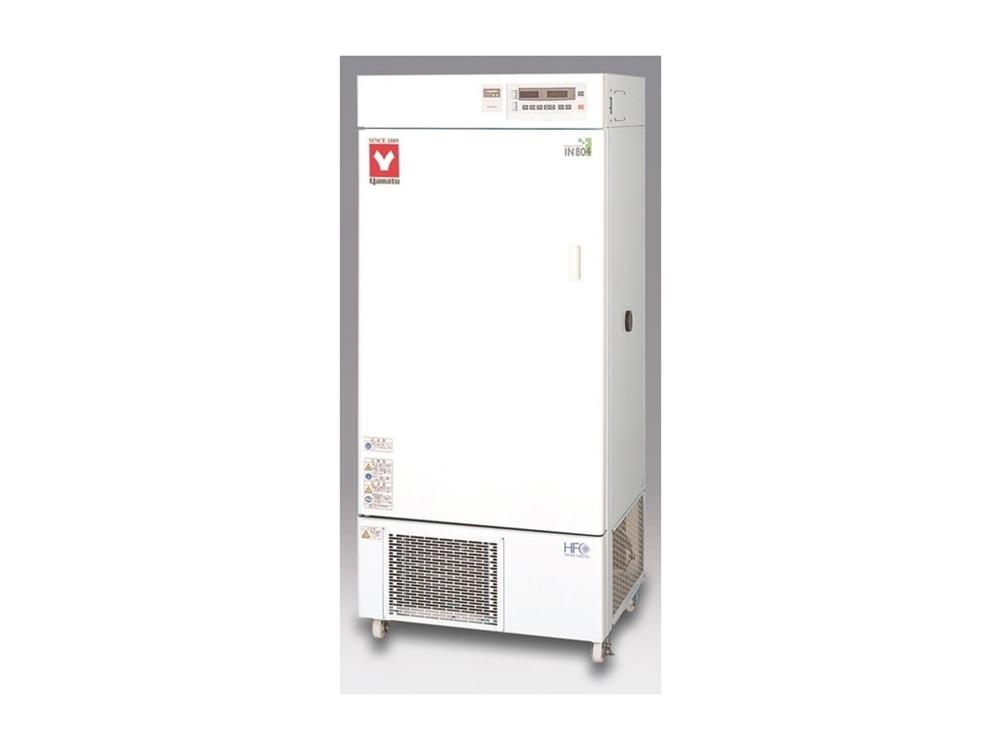

Yamato IN-804W-115V Programmable Refrigerated Incubator with Window 286L, 115V
Temperature Range
-10°C to +50°C
Temperature Distribution Accuracy
±1.0°C (refrigerator in continuous operation at 37°C)
Chamber Volume
286L
Features
- High accuracy temperature control and temperature distribution
- Inner glass door keeps temperature stable during sample observation
- Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention (IN604W/804W)
- Interior light for better sample visibility (IN604W/804W)
- Optional slide shaker table available to put in and take out samples easily (IN604W)
Low temperature 286L forced convection incubator applicable for low temperature tests and environmental tests. Designed with a large dual glass door and inner door that forms a triplex glass door for improved heat retention. Programmable. High accuracy temperature control and temperature distribution. Operating temperature range: -10~ + 50° C
INCLUDED:
The Yamato IN-804W-115V Programmable Refrigerated Incubator with Window 286L, 115V includes:
- 5 x Shelves w/ 10 Brackets
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 1 Year Manufacturer's Warranty
System | Forced air convection |
Operating temperature range | -10°C to +50°C |
Temperature adjustment accuracy | ±0.3°C (refrigerator in continuous operation) / ±1.0°C (refrigerator in cycle operation) |
Temp. distribution accuracy | ±1.0°C (refrigerator in continuous operation at 37°C) |
Max. temp. reaching time | Data unavailable |
Minimum temp. reaching time | Data unavailable |
Interior material | Stainless steel |
Exterior material | Chrome free electronic galvanized plated steel plate chemical proof baking finish |
Observation window | Data unavailbale |
Heat insulation material | Styrene foam |
Refrigerator | Air-cooled fully closed compressor 300W |
Refrigerator medium | R404A |
Defrosting mechanism | Manual ON / Auto OFF, Timer operation, Cycle operation |
Blower fan | Axial fan |
Heater | Iron-chrome wire heater: 750W |
Sensor | Platinum resistance temperature detector: Pt100Ω (temp. controller), K-thermocouple (overheat prevention device) |
Cable port (right side) | I.D.: 30 mm |
Temperature control | PID control |
Temperature setting | Digital setting with ▲▼ keys |
Temperature display | Measured temperature: 4-digit orange LED digital display + VFD fluorescent display |
Timer / timer resolution | 0 min. ~ 999 hrs. 59 min. / 1 min. |
Operation function | Fixed temperature, auto stop, auto start, program (up to 32 steps, repeat operation) |
Additional functions | Timer function (accumulated time to 49,999 hrs), calibration off-set function, clock display |
Safety device | Self diagnostic function (Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention function), Key lock, Over current ELB, Overheat prevention device |
Internal dimensions W x D x H | 600 x 477 x 1000 mm |
External dimensions W x D x H | 710 x 645 x 1630 mm |
Internal capacity | 286L |
Shelf plate load | 15kg / pc. |
Shelf rest step number / pitch | 23 steps / 30mm |
Power supply (50/60Hz) | AC115V (with plug) AC220V (no plug, round terminal) |
Weight | ~ 120kg |
Door keys | 2 keys |
