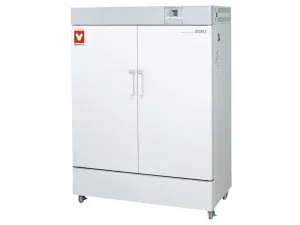

Yamato IC-903CR General Purpose Incubator with Communication Port 567L, 115V

Marshall Scientific$8,229.00 (ex VAT)
item image

Description by the supplier

Yamato IC-903CR General Purpose Incubator with Communication Port 567L, 115V



Temperature Range

Room temp. +5 to 80°C

Temperature Distribution Accuracy

± 1.0°C

Chamber Volume

567L



Features

- Space saving

- All lab incubator models come with either an observation window (W) for improved visibility or solid door

- Dual door system permits contents to be viewed easily without disrupting atmosphere of the lab incubator (except IC-100 series)

- Easy to use digital setting display and timer

- Air jacket technology ensures even and efficient heat distribution throughout the lab incubator chamber

- Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock

- Models 400 to 900 have an option for communication port (R)





Economical general purpose 567L natural convection incubator with communication port. Dual door system permits contents to be viewed easily without disrupting atmosphere of the incubator. Easy to use digital setting display and timer. Air jacket technology ensures even and efficient heat distribution throughout the chamber. Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock. Operating temperature range: +5-80°C


INCLUDED:

The Yamato IC-903CR General Purpose Incubator with Communication Port 567L, 115V includes:

- 8 x Shelves w/ 16 x Brackets

- Power Cord

- Operator's Manual

- Manufacturer's Documentation

- 1 Year Manufacturer's Warranty

Product details
SystemNatural convection
Operating temp. rangeRoom temp. +5~80°C
Temp. control accuracy±0.5°C (at 37°C)
Temp. distribution accuracy±1.0°C
InteriorStainless steel
ExteriorCold rolled steel plate with melamine resin baking finish
Heat insulatorGlass fiber
Heater2.2kW Iron-chrome wire heater
Temperature controllerPID control by microprocessor
Temperature setting systemOperation menu key and digital setting by ▲▼ keys, digital display
Temperature displayMeasurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED
Timer1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation functionFixed temperature, Auto start, Auto stop, Quick Auto stop
Additional functionCalibration off-set, Key-lock, Power outage compensation
Safety deviceSelf diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuitSSR drive system
SensorK-thermocouple
Internal dimensions WxDxH1070 x 530 x 1000 mm
External dimensions WxDxH1180 x 656 x 1619 mm
Internal capacity567L
Inner doorReinforced glass door x 2
Shelf load capacity~15 kg/pc.
Shelf rest step number29 steps x 2
Power supply (50/60 Hz)AC115V 13A (with plug) AC220V 6.5A (no plug, round terminal)
Weight~166kg
