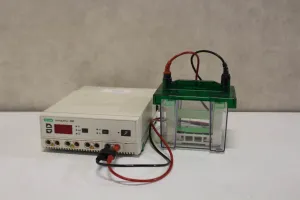

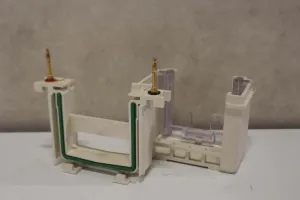

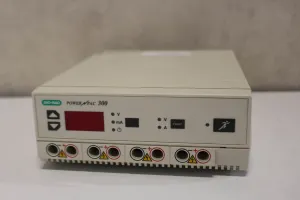

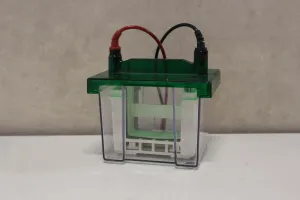

Bio-Rad Mini-PROTEAN 3 Electrophoresis System
Description from the supplier
The Bio-Rad Mini-PROTEAN 3 Electrophoresis System is an industry-standard apparatus designed to deliver reliable performance for precise gel electrophoresis applications. This second-hand model maintains its functional integrity and efficiency, meeting the demands of research professionals seeking a cost-effective option.
Key Specifications:
- **Cell Dimensions**: 160 x 120 x 180 mm (DxWxH)
- **Gel Size**: 80 x 73 mm (WxH)
- **Inner Plate Dimensions**: 101 x 73 mm (WxH)
- **Outer Plate Dimensions**: 101 x 83 mm (WxH)
- **Precast Gel Compatibility**: Ready Gels
Performance Capabilities:

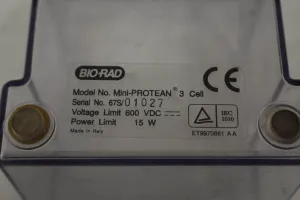

- **Voltage Limit**: Up to 600 VDC and 15 watts
- **Power**: 75 watts
- **Output**: Offers constant voltage or current with an automatic crossover feature
- **Voltage Range**: Adjustable from 10 V to 300 V in 1 V increments
- **Current Range**: Adjustable from 5 mA to 400 mA in 1 mA increments
- **Terminals**: Equipped with four pairs of recessed female banana jacks, configured in parallel
- **Timer**: Adjustable from 001 to 999 minutes
Performance Specifications:
- **Ripple**: Minimal ripple at ±1% under maximum operating conditions (300 V, 75 W)
- **Line Regulation**: Maintains ±0.5% stability at 300 V and 750 W
- **Load Regulation**: Ensures ±1% consistency for a 50% change in output load at 300 V
- **Drift**: Stable within ±1% after a 30-minute warm-up at 300 V and 75 W
- **Voltage and Current Stability**: Precision within ±1 V and ±1 mA, respectively

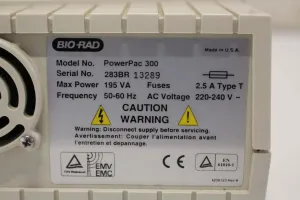

Physical Characteristics:
- **System Dimensions**: 290 x 210 x 80 mm (DxWxH)
- **System Weight**: 1.8 kg
With its precision outputs and adaptable controls, the Bio-Rad Mini-PROTEAN 3 is ideally suited for those requiring meticulous consistency in electrophoresis trials.
