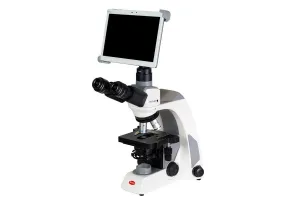

Motic Panthera E2 Trinocular + BTI10 Camera Bundle
Panthera E2 microscopes combine high quality materials and precise engineering to a persistent and resilient construction. Smooth operation of the mechanics is self-evident for fast and reliable results, responsible for shifting your daily work in classroom and lab to a higher level of quality. User-friendly design, robust for tough environments and unique features grants the best performance.
The Moticam BTI10 combines a space-saving camera hardware with new Wi-Fi technology. The 4MP Wi-Fi camera comes together with an 10” Android tablet to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube.INCLUDED:
The Motic Panthera E2 Trinocular + BTI10 Camera Bundle includes:
- 4X/0.10 (WD 30.5mm ) Objective
- 10X/0.25 (WD 17.4mm ) Objective
- 40X/0.65/S (WD 0.6mm ) Objective
- 100X/1.25/S-Oil (WD 0.16mm ) Objective
- Dust Cover
- Power Cord
- Allen Key
- UC-WF eyepieces 10X/20mm
- Moticam BTI10
- 0.35X C-Mount camera adapter
- Manufacturer’s Documentation
- 5 Year Manufacturer’s Warranty
Motic Panthera E2 Trinocular + BTI10 Camera Bundle SpecificationsPanthera E32 Trinocular SpecificationsOptical systemColor Corrected Infinity Optical System (CCIS®)Observation tubeTrinocular head, Siedentopf type, 360° swivelingInclination25° inclined, 360° rotating (storage saving), 360° swivellingTrinocular light splitFixed 50:50Interpupillary distance48-75mmDiopter adjustmentOn both eyepieces, +/- 5 diopterEyepiecesWidefield UC-WF10X/20mm with diopter adjustmentNosepieceReversed quadrupleObjective classificationCCIS® UC Plan Achromatic (Pb free)Objectives4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)Objective mounting threadW 4/5"x1/36" (RMS standard)Stand typeUprightStageMechanical stage with built-in low position rackless coaxial stage control and sample holderStage size140x135mmTravel range X&Y75x40mmCondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersDiaphragmIris diaphragmFocus mechanismCoaxial coarse and fine focusing system with tension adjustmentFine focus precision2μmFocusing stroke25mmUpper limit stopUpper limit stop preset but adjustableFilter holderOn top of the illuminatorTransmitted illuminationFixed Koehler LED 1W with intensity controlIllumination featuresNosepiece LED light intensity indicatorTransformerInternalPower supply110-240V (CE), USB 2.0 for battery packOther featuresUSB 2.0 for external camera powerDimensions LxWxH282x210x396mmNet weight7.5kg
BTI10 Camera SpecificationsSensor TypeCMOSSensor Size1/3"Imaging Area5.44x3.07mmCapture Resolution Info4MP (2592x1520 pixels)Live display mode through Wi-Fi1280x720, 1920x1080 pixels (Full HD)Live display mode through Ethernet1280x720, 1920x1080 pixels (Full HD)Pixel size2.0x2.0μmScan modeProgressiveData transferWi-Fi (2.4 & 5 GHz), EthernetMax. frames per second (fps)1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)Exposure time0.03 msec to 0.03 secOperating temperatureFrom 0 to +60 Degrees Celsius non condensingMax. signal to noise ratio38.3dBDynamic range64.6dBSensitivity1.9V/Lux-sec (550nm)ButtonsOn/OffSupport deviceUniversal Web browser (HTML5)Supported OSWindows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higherMinimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MBLens mountC-MountScreen10" IPS TabletSoftwareMotiConnect App for iOS and Android (pre-installed)FunctionsStill image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.Power supply12V (External Power supply)Tablet bracket holderFor tablets from 7” to 10”Package includesUSB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)Tablet SpecificationsSize (mm)218x136x10mmSystemAndroid 10Pre-installed AppMotiConnectLanguageMulti-LanguageCPU2.0GHz 8-coreRAM6GB DDR3NAND Flash128GBDisplay10" (IPS) 16:10 RatioDisplay resolutions1920x1200Touch PanelCapacitive Multi-Touch ScreenGPUMALI-G720 MP3PortsMicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)Speaker8Ω/0.7Wx2MicMIC (Internal)Wi-Fi802.11b/g/nBluetooth4.0CameraFront (5M Pixels) + Rear (8M Pixels)Support display formatMPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBMSupport audio formatMP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAVPicture formatJPG, JPEG, GIF, BMP, PNGBattery3.7V/3500mAh Rechargeable BatteryPower supply tabletInput:AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging)CertificationsFCC CEColorWhiteComparison of ModelsSpecificationPanthera E2 BinocularPanthera E2 Binocular (w/o 100x)Panthera E2 Trinocular + BMH4000 Camera BundlePanthera E2 Trinocular + BTI10 Camera BundlePanthera E2 TrinocularPanthera E2 Trinocular (w/o 100x)Optical SystemColor Corrected Infinity Optical System (CCIS®)Color Corrected Infinity Optical System (CCIS®)Color Corrected Infinity Optical System (CCIS®)Color Corrected Infinity Optical System (CCIS®)Color Corrected Infinity Optical System (CCIS®)Color Corrected Infinity Optical System (CCIS®)Observation TubeBinocular head, Siedentopf type, 360° swivelingBinocular head, Siedentopf type, 360° swivelingTrinocular head, Siedentopf type, 360° swivelingTrinocular head, Siedentopf type, 360° swivelingTrinocular head, Siedentopf type, 360° swivelingTrinocular head, Siedentopf type, 360° swivelingTrinocular Light SplitN/AN/AFixed 50:50Fixed 50:50Fixed 50:50Fixed 50:50EyepiecesWidefield UC-WF10X/20mm with diopter adjustmentWidefield UC-WF10X/20mm with diopter adjustmentWidefield UC-WF10X/20mm with diopter adjustmentWidefield UC-WF10X/20mm with diopter adjustmentWidefield UC-WF10X/20mm with diopter adjustmentWidefield UC-WF10X/20mm with diopter adjustmentObjectives4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)Stage Size140x135mm140x135mm140x135mm140x135mm140x135mm140x135mmIlluminationLEDLEDLEDLEDLEDLED.comparison-table tr td:nth-child(5) { background-color: #fffacd; }
Optical system | Color Corrected Infinity Optical System (CCIS®) |
Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
Inclination | 25° inclined, 360° rotating (storage saving), 360° swivelling |
Trinocular light split | Fixed 50:50 |
Interpupillary distance | 48-75mm |
Diopter adjustment | On both eyepieces, +/- 5 diopter |
Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
Nosepiece | Reversed quadruple |
Objective classification | CCIS® UC Plan Achromatic (Pb free) |
Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
Objective mounting thread | W 4/5"x1/36" (RMS standard) |
Stand type | Upright |
Stage | Mechanical stage with built-in low position rackless coaxial stage control and sample holder |
Stage size | 140x135mm |
Travel range X&Y | 75x40mm |
Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
Diaphragm | Iris diaphragm |
Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
Fine focus precision | 2μm |
Focusing stroke | 25mm |
Upper limit stop | Upper limit stop preset but adjustable |
Filter holder | On top of the illuminator |
Transmitted illumination | Fixed Koehler LED 1W with intensity control |
Illumination features | Nosepiece LED light intensity indicator |
Transformer | Internal |
Power supply | 110-240V (CE), USB 2.0 for battery pack |
Other features | USB 2.0 for external camera power |
Dimensions LxWxH | 282x210x396mm |
Net weight | 7.5kg |
Sensor Type | CMOS |
Sensor Size | 1/3" |
Imaging Area | 5.44x3.07mm |
Capture Resolution Info | 4MP (2592x1520 pixels) |
Live display mode through Wi-Fi | 1280x720, 1920x1080 pixels (Full HD) |
Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
Pixel size | 2.0x2.0μm |
Scan mode | Progressive |
Data transfer | Wi-Fi (2.4 & 5 GHz), Ethernet |
Max. frames per second (fps) | 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength) |
Exposure time | 0.03 msec to 0.03 sec |
Operating temperature | From 0 to +60 Degrees Celsius non condensing |
Max. signal to noise ratio | 38.3dB |
Dynamic range | 64.6dB |
Sensitivity | 1.9V/Lux-sec (550nm) |
Buttons | On/Off |
Support device | Universal Web browser (HTML5) |
Supported OS | Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher |
Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
Lens mount | C-Mount |
Screen | 10" IPS Tablet |
Software | MotiConnect App for iOS and Android (pre-installed) |
Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
Power supply | 12V (External Power supply) |
Tablet bracket holder | For tablets from 7” to 10” |
Package includes | USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE) |
Size (mm) | 218x136x10mm |
System | Android 10 |
Pre-installed App | MotiConnect |
Language | Multi-Language |
CPU | 2.0GHz 8-core |
RAM | 6GB DDR3 |
NAND Flash | 128GB |
Display | 10" (IPS) 16:10 Ratio |
Display resolutions | 1920x1200 |
Touch Panel | Capacitive Multi-Touch Screen |
GPU | MALI-G720 MP3 |
Ports | MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging) |
Speaker | 8Ω/0.7Wx2 |
Mic | MIC (Internal) |
Wi-Fi | 802.11b/g/n |
Bluetooth | 4.0 |
Camera | Front (5M Pixels) + Rear (8M Pixels) |
Support display format | MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM |
Support audio format | MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV |
Picture format | JPG, JPEG, GIF, BMP, PNG |
Battery | 3.7V/3500mAh Rechargeable Battery |
Power supply tablet | Input:AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging) |
Certifications | FCC CE |
Color | White |
