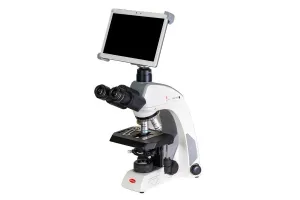

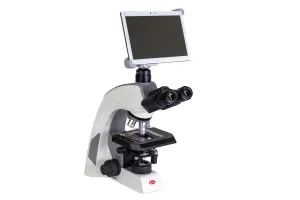

Motic Panthera C2 Trinocular + BTI10 Camera Bundle

Marshall Scientific$3,139.00 (ex VAT)
item image

Description by the supplier

Motic Panthera C2 Trinocular + BTI10 Camera Bundle

If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution.


The Motic Moticam BTI10 is a digital microscope camera with a 10-inch Android tablet that can deliver fast live images up to 30 frames per second on any trinocular microscope with the right C-mount adapter. With the pre-installed MotiConnect app, you can view live camera streams, capture, edit, measure, annotate, save, and share your microscope image by simply touching the icons on the tablet.INCLUDED:

The Motic Panthera C2 Trinocular + BTI10 Camera Bundle includes:

- Panthera C2 Trinocular

- Moticam BTI10

- Compatible C-mount adapter

- 4X/0.10 (WD 30.5mm) Objective

- 10X/0.25 (WD 17.4mm) Objective

- 40X/0.65/S (WD 0.6mm) Objective

- 100X/1.25/S-Oil (WD 0.16mm) Objective

- Dust Cover

- Power Cord

- Allen Key

- Blue Filter

- Halogen Bulb

- LED Module



Motic Panthera C2 Trinocular + BTI10 Camera Bundle SpecificationsPanthera C2 Trinocular SpecificationsOptical systemColor Corrected Infinity Optical System (CCIS®)Observation tubeTrinocular head, Siedentopf type, 360° swivelingInclination25° inclined, 360° swivelingTrinocular light splitFixed 50:50Interpupillary distance48-75mmDiopter adjustmentOn both eyepieces, +/- 5 diopterEyepiecesWidefield UC-WF10X/20mm with diopter adjustmentNosepieceReversed quintuple, codedObjective classificationCCIS® UC Plan Achromatic (Pb free)Objectives4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)Objective mounting threadW 4/5"x1/36" (RMS standard)Stand typeUprightStageCompact mechanical stage with built-in low position rackless coaxial stage control and sample holderStage size185x145mmTravel range X&Y75x50mmCondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersDiaphragmIris diaphragmFocus mechanismCoaxial coarse and fine focusing system with tension adjustmentFine focus precision2μmFocusing stroke25mmUpper limit stopUpper limit stop preset but adjustableFilter holderOn top of the illuminator with fixing capTransmitted illuminationKoehler LED 3W & Quartz halogen 6V/30W with intensity controlIllumination interchangeabilityHalogen/LED and LED color temperature interchangeabilityIllumination featuresMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicatorTransformerInternalPower supply110-240V (CE)Other featuresUSB 2.0 for external camera powerAccessories includedDust cover, power cord, Allen key, blue filter, halogen bulb, LED moduleDimensions LxWxH282x210x396mmNet weight8.4kgBTI10 Camera SpecificationsSensor TypeCMOSSensor Size1/3"Imaging Area5.44x3.07mmCapture Resolution Info4MP (2592x1520 pixels)Live display mode through Wi-Fi1280x720, 1920x1080 pixels (Full HD)Live display mode through Ethernet1280x720, 1920x1080 pixels (Full HD)Pixel size2.0x2.0μmScan modeProgressiveData transferWi-Fi (2.4 & 5 GHz), EthernetMax. frames per second (fps)1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)Exposure time0.03 msec to 0.03 secOperating temperatureFrom 0 to +60 Degrees Celsius non condensingMax. signal to noise ratio38.3dBDynamic range64.6dBSensitivity1.9V/Lux-sec (550nm)ButtonsOn/OffSupport deviceUniversal Web browser (HTML5)Supported OSWindows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higherMinimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MBLens mountC-MountScreen10" IPS TabletSoftwareMotiConnect App for iOS and Android (pre-installed)FunctionsStill image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.Power supply12V (External Power supply)Tablet bracket holderFor tablets from 7” to 10”Package includesUSB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)Tablet SpecificationsSize (mm)218x136x10mmSystemAndroid 10Pre-installed AppMotiConnectLanguageMulti-LanguageCPU2.0GHz 8-coreRAM6GB DDR3NAND Flash128GBDisplay10" (IPS) 16:10 RatioDisplay resolutions1920x1200Touch PanelCapacitive Multi-Touch ScreenGPUMALI-G720 MP3PortsMicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)Speaker8Ω/0.7Wx2MicMIC (Internal)Wi-Fi802.11b/g/nBluetooth4.0CameraFront (5M Pixels) + Rear (8M Pixels)Support display formatMPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBMSupport audio formatMP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAVPicture formatJPG, JPEG, GIF, BMP, PNGBattery3.7V/3500mAh Rechargeable BatteryPower supply tabletInput:AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging)CertificationsFCC CEColorWhiteComparison of ModelsSpecificationPanthera C2 BinocularPanthera C2 Trinocular + BMH4000 Camera BundlePanthera C2 Trinocular + BTI10 Camera BundlePanthera C2 Trinocular PhasePanthera C2 Trinocular Simple PhasePanthera C2 Trinocular Compound MicroscopeObservation TubeBinocular HeadTrinocular headTrinocular headTrinocular HeadTrinocular HeadTrinocular HeadInclination25° Inclined25° inclined25° inclined25° Inclined25° Inclined25° InclinedEyepiecesUC-WF10x/20UC-WF10X/20mm with diopter adjustmentUC-WF10X/20mm with diopter adjustmentUC-WF10x/20UC-WF10x/20UC-WF10x/20Diopter Adjustment+/- 5 diopterOn both eyepieces, +/- 5 diopterOn both eyepieces, +/- 5 diopter+/- 5 diopter+/- 5 diopter+/- 5 diopterNosepieceReversed QuintupleReversed quintuple, codedReversed quintuple, codedReversed QuintupleReversed QuintupleReversed QuintupleObjectivesUC Plan AchromatsUC Plan Achromatic (Pb free)UC Plan Achromatic (Pb free)UC Plan AchromatsUC Plan AchromatsUC Plan AchromatsStage Size (mm)185 x 145185 x 145185 x 145185 x 145185 x 145185 x 145CondenserFocusable and Centerable Abbe Condenser N.A. 0.90 / 1.25Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersFocusable and Centerable Abbe Condenser N.A. 0.90 / 1.25Focusable and Centerable Abbe Condenser N.A. 0.90 / 1.25Focusable and Centerable Abbe Condenser N.A. 0.90 / 1.25Contrast TechniquesBrightfieldN/AN/APhaseSimple PhaseN/ACameraN/ABMH4000 CameraBTI10 CameraN/AN/AN/ACamera Capture ResolutionN/A8MP4MP (2592x1520 pixels)N/AN/AN/ACamera Supported OSN/AWindows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higherWindows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higherN/AN/AN/ACamera ScreenN/A11.6" native 1920x1080 pixels full HD screen with bracket10" IPS TabletN/AN/AN/A.comparison-table tr td:nth-child(4) { background-color: #fffacd; }

Product details
Optical systemColor Corrected Infinity Optical System (CCIS®)
Observation tubeTrinocular head, Siedentopf type, 360° swiveling
Inclination25° inclined, 360° swiveling
Trinocular light splitFixed 50:50
Interpupillary distance48-75mm
Diopter adjustmentOn both eyepieces, +/- 5 diopter
EyepiecesWidefield UC-WF10X/20mm with diopter adjustment
NosepieceReversed quintuple, coded
Objective classificationCCIS® UC Plan Achromatic (Pb free)
Objectives4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
Objective mounting threadW 4/5"x1/36" (RMS standard)
Stand typeUpright
StageCompact mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size185x145mm
Travel range X&Y75x50mm
CondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
DiaphragmIris diaphragm
Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
Fine focus precision2μm
Focusing stroke25mm
Upper limit stopUpper limit stop preset but adjustable
Filter holderOn top of the illuminator with fixing cap
Transmitted illuminationKoehler LED 3W & Quartz halogen 6V/30W with intensity control
Illumination interchangeabilityHalogen/LED and LED color temperature interchangeability
Illumination featuresMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
TransformerInternal
Power supply110-240V (CE)
Other featuresUSB 2.0 for external camera power
Accessories includedDust cover, power cord, Allen key, blue filter, halogen bulb, LED module
Dimensions LxWxH282x210x396mm
Net weight8.4kg
Sensor TypeCMOS
Sensor Size1/3"
Imaging Area5.44x3.07mm
Capture Resolution Info4MP (2592x1520 pixels)
Live display mode through Wi-Fi1280x720, 1920x1080 pixels (Full HD)
Live display mode through Ethernet1280x720, 1920x1080 pixels (Full HD)
Pixel size2.0x2.0μm
Scan modeProgressive
Data transferWi-Fi (2.4 & 5 GHz), Ethernet
Max. frames per second (fps)1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
Exposure time0.03 msec to 0.03 sec
Operating temperatureFrom 0 to +60 Degrees Celsius non condensing
Max. signal to noise ratio38.3dB
Dynamic range64.6dB
Sensitivity1.9V/Lux-sec (550nm)
ButtonsOn/Off
Support deviceUniversal Web browser (HTML5)
Supported OSWindows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher
Minimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mountC-Mount
Screen10" IPS Tablet
SoftwareMotiConnect App for iOS and Android (pre-installed)
FunctionsStill image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply12V (External Power supply)
Tablet bracket holderFor tablets from 7” to 10”
Package includesUSB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)
Size (mm)218x136x10mm
SystemAndroid 10
Pre-installed AppMotiConnect
LanguageMulti-Language
CPU2.0GHz 8-core
RAM6GB DDR3
NAND Flash128GB
Display10" (IPS) 16:10 Ratio
Display resolutions1920x1200
Touch PanelCapacitive Multi-Touch Screen
GPUMALI-G720 MP3
PortsMicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
Speaker8Ω/0.7Wx2
MicMIC (Internal)
Wi-Fi802.11b/g/n
Bluetooth4.0
CameraFront (5M Pixels) + Rear (8M Pixels)
Support display formatMPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
Support audio formatMP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
Picture formatJPG, JPEG, GIF, BMP, PNG
Battery3.7V/3500mAh Rechargeable Battery
Power supply tabletInput:AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging)
CertificationsFCC CE
ColorWhite
