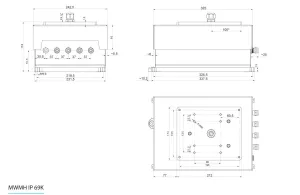

Radwag MWMH 100-2 Electromagnetic Compensation Weighing Module

The OHAUS Explorer Analytical Balance Series combines innovative functionality and design elements t (more)o deliver unparalleled functionality in a line of high performance balances that is unique on the market. These are intelligent and intuitive balances, complemented by a series of innovative features that simplify even the most complex laboratory measurements. The Explorer series includes three high-capacity precision models with capacities up to 35 kg. Same functions as all other Explorers, such as AutoCal™ and 1 second stabilization time. - The display can be separated from the base by up to 5 feet (1.5 meters) to fit operational needs in almost any workspace. A 27 foot (9 meter) cable is also available. when additional flexibility is needed. - Die-cast metal base and 377×311mm stainless steel stand base, the Explorer High Capacity is built to withstand everyday use Applications Weighing, Piece Counting, Percent Weighing, Check Weighing, Animal / Dynamic Weighing, Filling, Totalization / Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics Screen 5.7 '' (145 mm) color VGA graphic touchscreen display with user-controlled brightness Operation AC adapter (included) Communication RS232 and USB (included) or second RS232 / Ethernet (accessories sold separately). GLP / GMP data output with real time clock. Construction Metal base, ABS top housing, stainless steel deck, front illuminated level indicator, weigh below hook, safety bracket , calibration lock, 4 touchless sensors, coverage in use Characteristics of the project Selectable environmental filters, auto tare, user selectable range calibration points, software lock and reset menu, user selectable communication settings and data print options, user definable project and user ID, standby automatic, up to 14 operating languages For further information and technical characteristics, download the attached data sheet.

MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, (more) Italy, Japan and the USA. Vast Max Capacity Range Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement. Protection Against Challenging Conditions Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation. Fast and Precise Measurement High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s. Cooperation with terminals Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications. Mechanical design versions: MWMH xxx - 1 - model with Binder connectors (IP65), MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan, MWMH xxx - 3 - model with cable glands, (IP 69K), MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan MWMH xxx - TWD - model with cable glands (IP 69K).

MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, (more) Italy, Japan and the USA. Vast Max Capacity Range Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement. Protection Against Challenging Conditions Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation. Fast and Precise Measurement High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s. Cooperation with terminals Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications. Mechanical design versions: MWMH xxx - 1 - model with Binder connectors (IP65), MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan, MWMH xxx - 3 - model with cable glands, (IP 69K), MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan MWMH xxx - TWD - model with cable glands (IP 69K).

Intended use: Operation of professional MWLH electromagnetic high resolution modules is based on an  (more)electromagnetic digital converter. The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed. Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment. Design: MWMH Weighing Module features integrated stainless steel housing with degree of protection classified as IP 65. It is connected to signal cables via quick coupling. The module base features four holes located in its corners allowing to fix the module to the base using M8 screws. MWMH Weighing Module comprises aluminium, painted plate with four threaded M6 holes, useful for fixing the weighing pan. Features: Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65), Reading unit of 0,1 g, Ease of adaptation to required usage area, Cooperation with HY terminal, Interfaces: RS 232, RS 485, Ethernet, 2xIN i 2xOUT, Profibus (option).

The MW-01-A mass converter is designed to be a component of an industrial load cell scale. Depending (more) on the needs, communication with the mass converter can be carried out via the following communication interfaces: RS232, RS485, Ethernet, Ethernet IP, Profibus or Profinet. The MW-01-A mass converter is compatible with indicators and PC. Operation of the MW-01-A mass converter via PC is carried out using „MW Manager” software.

The series of MUYA electromagnetic high resolution modules is designed to be incorporated into custo (more)mer’s weighing systems. A new generation’s MUYA 5 ultra-microbalance module is designed to fulfill our customers’ high expectations regarding mass measurements carried out with the greatest precision. The system of internal adjustment improves the quality of work even more by affecting measurements results. Operation of MUYA electromagnetic high resolution module is based on an electromagnetic digital converter. Compact design and inbuilt electronics ensure great possibilities when it comes to module's adaptation capabilities. Due to high precision of a measurement it is recommended to build the module into the customer's device (e.g. anti-draft chamber), thus limiting ambient conditions influence. Power supplier for MUYA weighing module comes standard.

E2-class mass standards represent an exceptional standard of precision in mass measurement. Classed  (more)as E2 metrology class, they are characterized not only by their high accuracy, but also by their versatility for use in laboratories, industry or scientific research. E2 class standard: stainless steel wire Nominal value: 100 mg Material: stainless steel High Precision of measurements The mass standard is the foundation of accurate mass measurement, as it affects the quality and reliability of results in many areas. Its role in maintaining uniformity and in meeting measurement standards is crucial, making the mass standard an indispensable metrology component. Stability over Time An important feature of E2 class mass standards is their ability to maintain measurement stability over the long term. It is this stability that makes standards of this class highly valued in laboratories and industry. Calibration and Strict Quality Control Systematic calibration is a key element in maintaining E2 class standards. This process involves comparing the mass standard with other standards of known mass to confirm and maintain measurement accuracy. Versatility of Applications E2 class mass standards are designed for a wide variety of applications. They can be used in analytical laboratories, the pharmaceutical industry, scientific research or other areas requiring precise mass measurements. Applications 1. Analytical Laboratories In analytical laboratories, where precise and repeatable measurements are crucial, E2 class mass standards find their wide application. 2. Pharma Industry In drug manufacturing, where quality control plays a key role, E2 class mass standards are indispensable in the calibration process of balances. 3. Scientific Research In scientific research, especially in areas requiring the utmost precision, E2 class mass standards are an indispensable tool for obtaining reliable results. 4. Metrology Industry In metrology laboratories, E2 class standards provide a reference point for evaluating and testing other measurement standards. E2 class standards are synonymous with excellence in mass measurement. Their versatility and high precision make them an indispensable tool in laboratories around the world and improve the quality and reliability of mass measurement results.

MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, (more) Italy, Japan and the USA. Vast Max Capacity Range Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement. Protection Against Challenging Conditions Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation. Fast and Precise Measurement High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s. Cooperation with terminals Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications. Mechanical design versions: MWMH xxx - 1 - model with Binder connectors (IP65), MWMH xxx - 2 - model with Binder connectors, (IP65), power supply and control of the transporter on a weighing pan, MWMH xxx - 3 - model with cable glands, (IP 69K), MWMH xxx - 4 - model with cable glands (IP69K), power supply and control of the transporter on a weighing pan MWMH xxx - TWD - model with cable glands (IP 69K).

The offered instrument / system is fully functional tested and ready to use. FURTHER DETAILS TO FOLL (more)OW
