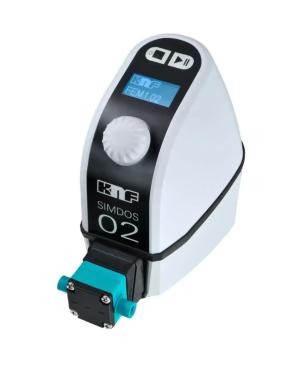

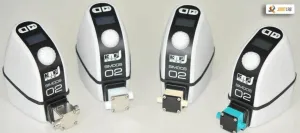

Dosing pump SIMDOS 02 FEM 1.02 KT 18 S KNF

Technical features Flow rate 0.5–3.0 l / min Suction (max.) 3 mWg Operating pressure (max.) 4 bar (r (more)el.) Permitted fluid temperature 5-80°C Maximum permissible viscosity 150 cSt FFKM valve material Membrane material PTFE coating Pump head material PTFE, PP, PVDF Applications Transfer of liquids Qualitative characteristics Small footprint Simple and intuitive use Manual control Self-priming, it can run dry Splash-proof with IP65 protection rating Available with different material configurations for chemical resistance Maintenance free Pump head materials: PP, PVDF, PTFE Membrane material: PTFE coating Valve material: FFKM Simriz® VERSIONS S (standard): the flow rate can only be set manually, using the knob on the upper side, as shown in the photo. RC (remote control): the range can be controlled remotely, such as from a PC, including a fault alarm; a connection cable will be supplied. Supplied with fittings for 12 mm internal diameter tube. Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Chemical-resistant vacuum pump consisting of N 840 G diaphragm vacuum pump, base plate, separator on (more) the suction side and high-performance condenser on the pressure side. Thanks to the high compatibility of steam and condensate, the system is perfectly suited for extremely aggressive/corrosive gases and vapours. Technical features Flow rate (max.): 34 l / min Final vacuum (max.): 6 mbar (abs.) Pressure (max.): 0.1 bar (rel.) Flow rate (m³/h) at atm. pressure: 2,04 Permissible fluid temperature between 5 and 40°C Valve material: FFPM Diaphragm material: PTFE coated Pump head material: TFM ™ PTFE Applications Distillation Rotary evaporation Multi-user vacuum systems Qualitative characteristics Vacuum system comprising chemically resistant diaphragm vacuum pump, base plate, separator on suction side and high performance condenser on pressure side Modular expandable 100% oil-free transfer Thereby pure transferring, evacuation and compression of gases High level of vapor and condensate compatibility Ideal for extremely aggressive / corrosive gases and vapors Integrated gas ballast valve 3-color status display for in operation / stand-by / error Integrated rotational speed control Environmentally friendly Start against ultimate vacuum of the pump Download the data sheet for further information and accessories. NOT SURE WHICH VACUUM PUMP YOU NEED? Try following our guide to KNF pumps: VACUUM PUMPS FOR THE LABORATORY Or download the KNF guide: THE IDEAL DIAPHRAGM PUMP FOR EVERY APPLICATION

Heating thermostat from 20 to 200°C, with TFT color display and complete programming functions LAUDA (more) ECO stands out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - The circulation pump can be adjusted to six levels - Programmer with 150 temperature/time segments separable into 5 programs - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Temperature graphs on display - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Heating performance graph of Gold immersion thermostats with stainless steel tank. Performance graph of the pump pressing on the six levels.

Heating thermostat from 20 to 200°C, with LCD display and simple programming functions LAUDA ECO sta (more)nds out for its range of features and ease of use. ECO thermostats are available in Silver (LCD display; simple programming) and Gold (TFT color display; complex programming) models, equipped with a mini USB interface as standard. A LAUDA innovation is the pressure flow controller located on the front of the head. This means that flow regulation between inside and outside is possible even during operation. - Monochrome LCD graphic display for simultaneous indication of actual and set values - The circulation pump can be adjusted to six levels - Integrated programmer: 1 program with max. 20 segments - Fully electronic continuous regulator with PID action - Additional key Tmax for overtemperature protection - The ECO heating thermostat line includes transparent baths up to 100°C and stainless steel up to 200°C - The most powerful units are equipped with the energy-saving LAUDA SmartCool system - Variants in 230V; the 50 Hz are also available with natural refrigerants - Convenient operation with softkey cursor - Safety class III for operation with flammable and non-flammable liquids. - mini-USB interface - Pump connections with 13mm plastic nipples as standard LAUDA tank thermostats are equipped as standard with a cooling coil. The E 4 model is also equipped with a lid for the bowl and connections for external applications. A drain cock on the rear side makes changing the heat transfer liquid easy and safe. Grafico delle prestazioni di riscaldamento dei termostati di immersione ECO Silver con vasca in acciaio inox. Performance graph of the pump pressing on the six levels. TECHNICAL VISUALIZATION Display 1 - Status display 2 - Display of the internal or external temperature value (T-int or T-ext) 3 - Soft-key bar Control panel 4 - Soft keys, left and right 5 - Enter key 6 - Cursor keys for Up, Down, Left and Right. 7 - T max key: display and adjustment of the overtemperature switch-off point 1 - USB interface 2 - Upper module receptacle approx. 51 mm x 27 mm for analog, RS 232/485 module, Profibus module and contact module 3 - Lower module receptacle approx. 51 mm x 17 mm for Pt100/LiBus module 4 - Connection socket 75S for control cable of cooling underpart for RE 1050 S 5 - Rating label 6 - Connection socket 51H for power supply between the control head and cooling underpart 7 - Mains connecting lead 1 - Cooling coil connections 2 - Pump connection: outflow and return (as standard only with E 4 S and ET 15 S) 3 - Four feet 1 - Mains connecting lead 2 - Rating label 3 - Bath draining tap 4 - Bath drain point

LAUDA Variocool: Versatile circulation chillers from 1200W to 10 kW used between -20°C and +80°C to  (more)dissipate process heat in laboratories, small plants or production. LAUDA Variocool circulation chillers convince with their space-saving design and the versatility offered by a wide variety of options. They are circulation thermostats suitable for use with non-flammable heat transfer liquids within a moderate temperature range. The new control panel design and color TFT display make making changes very simple and intuitive. Various options in power kW, pump pressure / flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. All models (except VC 600) are available in the air-cooled or water-cooled (W) versions and equipped with fixed swivel castors. High performance circulation chillers starting with the VC 5000 are available with sound insulation or outdoor installation option. Cooling performance of the Variocool VC 2000 model (measured with ethanol): - at 20°C, 2.00 kW - at 10°C, 1.50 kW - at 0°C, 1.06 kW - at -10°C, 0.68 kW - at -20°C, 0.38 kW Notable features - Adjustable bypass for pressure limitation - Top filling opening, drain cock on the back - Integrated programmer with 150 segments, divisible into 5 programs - Electronic level indicator with low level alarm - SmartCool system for energy-saving digital control of cooling, including automatic compressor control - Temperature graphs on display Examples of specific applications - Refractometer - Polarimeter - Disposable bioreactors - Extruder for food production - Micro reactors - Reactive control in chemical / pharmaceutical environments - Climatic chambers - Spatial simulation - Electric mobility; battery test - Test benches - Stress test - Crystallization regulation - Lyophilization - Micro structures - Painting plants Accessories included Nozzles for pump connections; screw cap. Various options in power (kW), pump pressure/flow rate and tank size offer a wide range of choice for the customer, adapting better to his needs. Contact us to understand the model that best suits your needs. Simple control panel with large TFT display with lots of information. Front panel of the LAUDA Variocool easily removable for fast maintenance and modifications. Easily upgradeable with different interfaces (analog module, contact module, RS 232/485, Profibus, Ethernet-USB module). USB Type B Interface. Connections located on the back of the Variocool: inlet/outlet pump connection; bypass adjustments. Large frontal pressure display. Pump performance graph of LAUDA Variocool heating chillers. Overview of the technical characteristics of the Variocool LAUDA models. TECHNICAL VISUALIZATION 1 - Filler nozzle with cover 2 - Control panel 3 - Pressure gauge 4 - Mains switch 5 - Alarm output and module bays 6 - Front panel (ventilation openings only in case of air-cooled devices) 7 - Ventilation openings (on both sides) 8 - Four castors (front castors with locking brake) 1 - Pump connection, outflow 2 - Bypass adjusting wheel 3 - Pump connection, return flow 4 - Drain tap 5 - Connecting sleeve for water cooling outlet (only available for water- cooled devices) 6 - Connecting sleeve for water cooling intake (only available for water- cooled devices) 7 - Ventilation grid 8 - Rating label 9 - Power supply 10 - Fuses (up to and including VC 3000 (W)) 1 - Light sensor 2 - Pressure gauge 3 - Mains switch 4 - Entry key and arrow keys 5 - Soft keys (left and right) 6 - USB interface Type B (on the side of the control panel) 7 - TFT display
