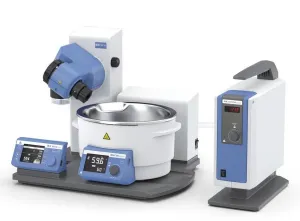

IKA RV 10 Auto Pro Flex Rotary Evaporator

• 4L heating bath optimized for rapid achievement of working temperature, with a temperature safety circuit and boil-dry protection
• Integrated vacuum controller and timer function
• Bright, high-contrast, TFT, color-graphic control panel with simple menu navigation and programming for up to ten individual procedures
• Automatic cooling water management, heating bath management, and ventilation
• Right or left flask rotation with push-off mechanism for tightly-fitting flasks
• Digital interfaces: USB port and RS-232 interface for remote control

Motorized lift with Safety-Stop function, which lifts the receiving flask from the heating bath in case of a power failure

Precise setting of distillation method per solvent with direct volume and efficiency control

Integrated solvent library with 40 preset solvents and the ability to expand to incorporate new processes

The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier.

• RV10 control
• HB digital S099 Heating Bath
• IKA VACSTAR digital Vacuum Pump
• RV 05.10 Balljoint clamp
• RV 10.89 Clamp NS 24
• RV 10.73 Vapor tube (NS 24/40)
• RV 10.8001 Seal
• RV 3.4 Woulff bottle
• RV 3.1 Support pole
• Vacuum hose (2 x 0.55 m)
• Water discharge hose (1 x 1 m)
• Water discharge hose (1 x 1 m)
• USB cable
• Power Cord
• Operator's Guide
• Manufacturer's Documentation
• 2 Year Manufacturer Warranty (+ Additional Free 3 Year Warranty Extension with IKA Registration)

IKA RV 10 Auto Pro Flex Rotary Evaporator SpecificationsType of coolingwithout condenserCooling surface1500 cm2Speed range5 - 300 rpmReversible direction of rotationyesSpeed tolerance set rotation speed < 100rpm1 ±rpmSpeed tolerance set rotation speed 100rpm1 ±%LiftMotorStroke140 mmHeating temperature rangeroom temp. - 180 °CHeat output1350 WSet temperature resolution1 ±KFilling volume max.4 lVacuum controller integratedyesTimeryesDimensions (W x H x D)500 x 430 x 440 mmWeight18.6 kgPermissible ambient temperature5 - 40 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 20RS 232 interface yes USB interface yes Analog outputyesVoltage100 - 240 VFrequency50/60 HzPower input100 WPower input standby3.3 WComparison of ModelsSpecificationIKA RV 10 Auto Pro FlexIKA RV 10 Digital FlexIKA RV 3 FlexIKA RV 8 FlexType of CoolingWithout CondenserVerticalN/AVerticalCooling Surface1500 cm²0 cm²N/A1500 cm²Speed Range5 - 300 rpm5 - 280 rpm20 - 300 rpm5 - 300 rpmLiftMotorMotorManualManualStroke140 mm140 mm150 mm120 mmHeating Temperature RangeRoom Temp. - 180 °CRoom Temp. - 180 °CRoom Temp. - 99 °CRoom Temp. - 180 °CTimerYesYesN/AN/ADimensions (W x H x D)500 x 430 x 440 mm500 x 430 x 440 mm440 x 530 x 330 mm510 x 490 x 345 mmWeight18.6 kg18.5 kg12 kg22.366 kgRS 232 InterfaceYesYesN/AN/AUSB InterfaceYesYesN/AN/AVoltage100 - 240 V220 - 240 / 115 / 100 - 240 / 100 - 120 / 100 - 115 V100 - 240 V100 - 240 V.comparison-table tr td:nth-child(2) { background-color: #fffacd; }Request a Formal Quote
