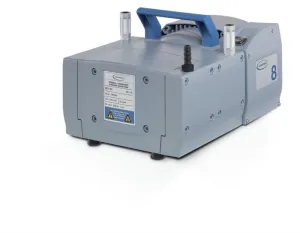

VACUUBRAND ME 8 NT Diaphragm Pump
Ultimate Vacuum
70 mbar
Max. pumping speed at 60 Hz
4.8 cfm
Number of Heads/Stages
4/1
Features
- Contamination-free pumping and evacuation
- Very high flow rate even near ultimate vacuum
- Quiet operation
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data. Large one-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping of large amounts of gas- es. Typical applications are vacuum ovens and pumping of non-corrosive gases in general. We recommend these pumps especially for processes with high inlet and process pressures. They are excellent for very fast evacuations. The ME 8 NT offers very short evacuation times.INCLUDED:
The VACUUBRAND ME 8 NT Diaphragm Pump includes:
- Power Cord
- Operator's Manual
- Manufacturer's Documentation
- 2 Year Manufacturer's Warranty
Max. pumping speed 50 Hz | 7.3 m 3/h |
Max. pumping speed 60 Hz | 4.8 cfm |
Ultimate vacuum | 70 mbar / 52 torr |
Number of heads | 4 |
Number of stages | 1 |
Lower ambient temperature (operation) | 10 °C |
Upper ambient temperature (operation) | 40 °C |
Lower ambient temperature (storage) | -10 °C |
Upper ambient temperature (storage) | 60 °C |
Max. back pressure (abs.) | 2 bar |
Inlet connection | Hose nozzle DN 8-10 mm |
Outlet connection | 2 x G1/4" |
Rated motor power | 0.25 kW |
Rated motor speed at 50/60 Hz | 1800 min -1 |
Protection class IEC 60529 | IP 40 |
Dimension L in mm | 328 mm |
Dimension B in mm | 239 mm |
Dimension H in mm | 198 mm |
Weight | 16.4 kg |
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®) | 45 dBA |
NRTL certification | Yes |
Items supplied | Pump completely mounted, ready for use, silencer, hose nozzle, with manual. |
Rated mains voltage range 1 | 120 V |
Mains frequency 1 | 60 Hz |
